| Product SKUs |

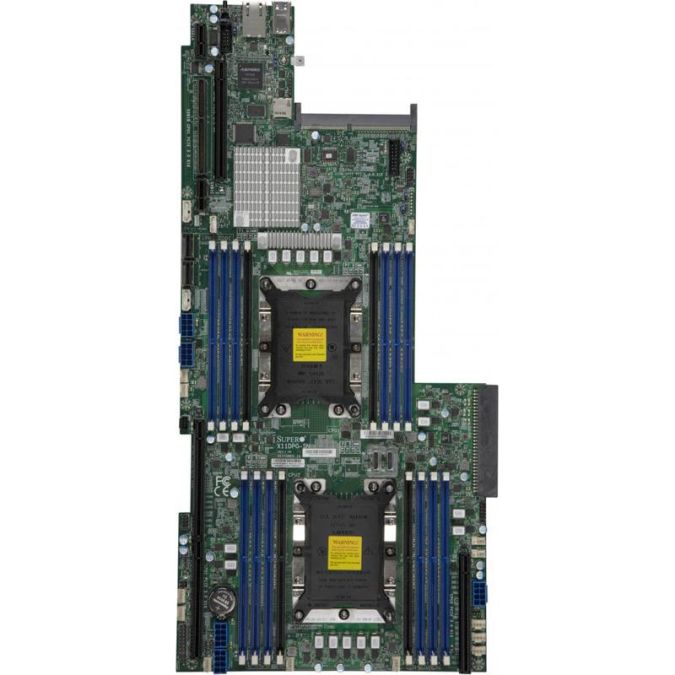

| Product SKUs | MBD-X11DPG-SN |
| Physical Stats |
| Form Factor | Proprietary |
| Dimension | 9.2' x 19.8' (23.37cm x 50.29cm) |
| Processor |
| CPU | 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors |
| Dual Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s |
| Note | *2933 MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro |
| System Memory |
| Memory Capacity | 16 DIMM slots |
| Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz |
| Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only) |
| Memory Type | 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS) |
| DIMM Sizes | RDIMM: 64GB, 128GB |
| LRDIMM: 128GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel® C621 |
| SATA | Intel® C621 controller for 10 SATA3 (6 Gbps) ports, RAID 0,1,5,10 |
| IPMI | ASPEED AST2500 |
| Graphics | 1 ASPEED AST2500 BMC port(s) |
| Network Controllers | N/A |
| Input / Output |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 port(s) (2 rear) |
| Video Output | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 header) |
| TPM | 1 TPM Header |
| Expansion Slots |
| PCIe | 4 PCIe 3.0 x16, |
| 1 PCIe 3.0 x8 |
| System BIOS |
| BIOS Type | AMI UEFI |
| Management |
| Software | SuperDoctor® 5, SUM , KVM with dedicated LAN, SPM , Intel® Node Manager, SSM , IPMI2.0 , Watchdog |
| PC Health Monitoring |
| Voltage | System temperature, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, Memory Voltages, 12 -fan status |
| LED | UID/Remote UID |
| CPU / System Overheat LED |
| Suspend static indicator LED |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| PECI |
| FAN | PWM fan speed control |
| Overheat LED indication |
| 12x 4-pin fan headers (up to 12 fans) |
| Other Features | UID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, Chassis intrusion detection, ACPI power management |
