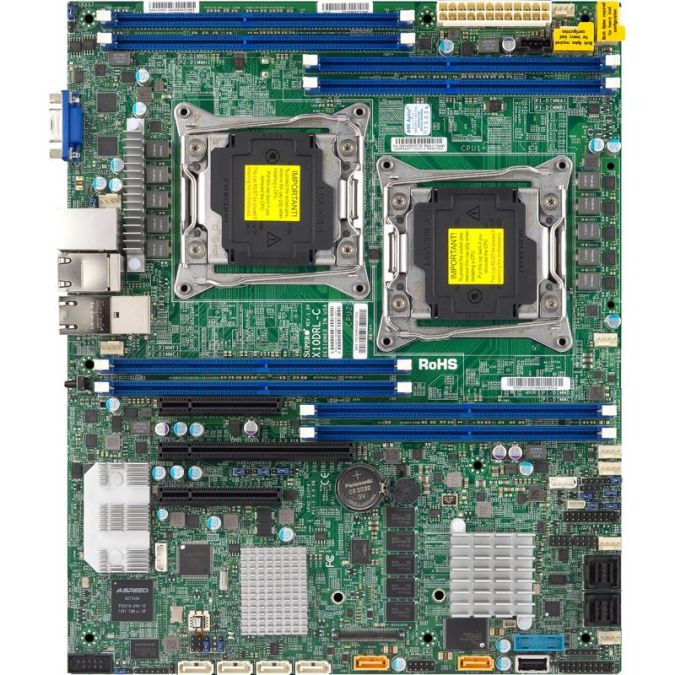

| System Memory |
| DIMM Sizes | 3DS LRDIMM: 128GB |
| LRDIMM: 32GB, 64GB |
| RDIMM: 4GB, 8GB, 16GB, 32GB |
| Error Detection | Corrects single-bit errors |
| Memory Capacity | 512GB ECC RDIMM, DDR4-2400MHz, in 8 DIMM slots |
| Memory Voltage | 1.2V |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| On-Board Devices |
| Chipset | Intel® C612 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
| Network Controllers | Dual LAN with Intel® Ethernet Controller I210 Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) |
| SAS | Broadcom 3108 SAS3 (12Gbps) controller, 2GB cache with SuperCap backup option, HW RAID 0, 1, 5, 6, 10, 50, 60 Supports up to 16 devices as default, more HDD devices support is also available as an option * For special SKU, please contact your Supermicro Sales. |
| SATA | Broadcom® 3108 HW with 2G Cache controller for 8 SAS3 (12Gbs) ports, RAID 0,1,5,6,10,50,60 |
| AHCI SATA | SATA3 (6Gbps), RAID 0, 1, 5, 10 |
| SCU SATA | SATA3 (6Gbps), RAID 0, 1, 5, 10 |
| Graphics | Aspeed AST2400 BMC |
| Input / Output |
| SATA | 6 SATA3 (6Gbps) port |
| 1 I-SATA 4 and I-SATA 5 support SATA DOM |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| 1 RJ45 Dedicated IPMI LAN port |
| Serial Port / Header | 1 COM Port (1 header) |
| USB | 4 USB 3.0 ports (2 rear + 2 headers) |
| 3 USB 2.0 ports (2 headers, 1 Type A) |
| Video Output | 1 VGA port |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| USB Keyboard support |
| ACPI 3.0 / 4.0 |
| Plug and Play (PnP) |
| UEFI 2.3.1 |
| PCI 2.3 |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Management |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Software | Intel® Node Manager, IPMI2.0, SPM, SUM, SuperDoctor® 5, Watchdog |
| Product SKUs |
| Product SKUs | - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs. |
| Physical Stats |
| Form Factor | ATX |
| Dimensions | 12' x 10' (30.48cm x 25.4cm) |
| Processor/Cache |
| CPU | Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. |
| Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s |
| Cores / Cache | Up to 22 cores † / Up to 55MB† cache |
| Note | † BIOS version 2.0 or above is required |
| ** Motherboard supports this maximum TDP. Please verify your system can thermally support. |
| Expansion Slots |
| PCI-E | 1 PCI-E 3.0 x16 |
| 2 PCI-E 3.0 x8, |
| PC Health Monitoring |
| Voltage | +12V, +3.3V, +5V, +5V standby, 5 Phase-switching voltage regulator, Memory, Memory Voltages, VBAT |
| FAN | 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for speed control |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI |
| LED | CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID |
| Other Features | Chassis intrusion detection, Chassis intrusion header, RoHS |
| Operating Environment |
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
