More Information
| Applicability |
Enterprise server / data center platform |
| Manufacturer |
Supermicro |
| SKU |

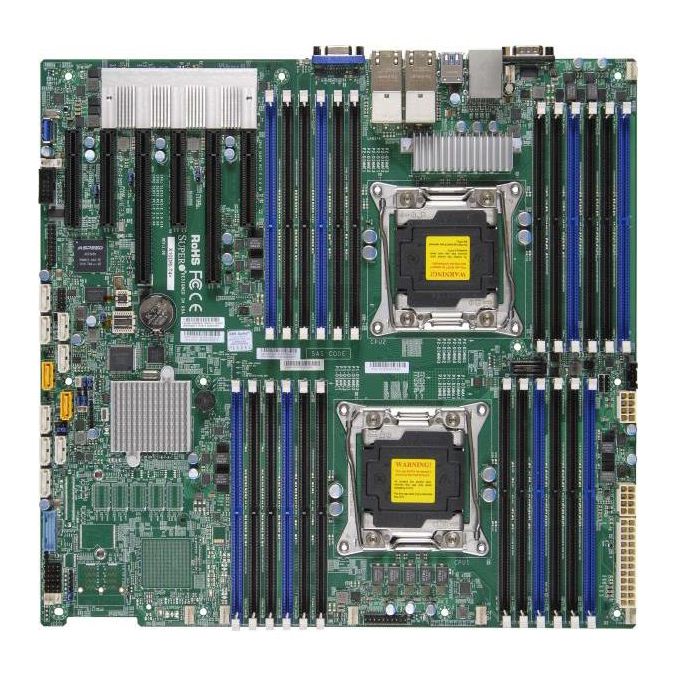

X10DRi-T4+ |
| Product Type |
Server Motherboard |
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family, UPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 3TB† ECC 3DS LRDIMM, up to DDR4- 2400†MHz , 24x DIMM slots
4. 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, and 1 PCI-E 2.0 x4 (in x8) slot
5. Quad LAN w/ Intel® X540 10GBase-T
6. 10 SATA3 (6Gbps), RAID 0, 1, 5, 10
7. Integrated IPMI 2.0 and KVM with Dedicated LAN
8. 5 USB 3.0 (2 rear, 2 front panel, 1 Type-A) 4 USB 2.0 (2 rear, 2 front panel)
|
