| Motherboard |
| Motherboard | Super X11SDW-16C-TP13F+ |
| Processor |
| CPU | Intel® Xeon® processor D-2183IT , CPU TDP support 100W |
| Cores / Cache | 16 cores, 32 threads |
| System Memory |
| Memory Capacity | Up to 512GB DDR4 ECC LRDIMM |
| Up to 256GB DDR4 ECC RDIMM |
| 4 DIMM slots |
| Memory Type | 2666/2400/2133MHz ECC DDR4 L/RDIMM |
| Operating speed up to 2400MHz |
| DIMM Sizes | 128GB, 64GB, 32GB, 16GB |
| Memory Voltage | 1.2 V |
| On-Board Devices |
| Chipset | System on Chip (SoC) |
| SATA | SATA3 (6Gbps) ports via SoC controller |
| Network Controllers | 4x 10G SFP+ LAN via SoC |
| 8x RJ45 Gigabit Ethernet LAN with Intel® Ethernet Controller I350-AM4 |
| 1x RJ45 Gigabit Ethernet with Intel I210 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | VGA via Aspeed AST2500 BMC |
| Input / Output |
| SATA | 4 SATA3 (6Gbps) ports, SSD only, RAID 0, 1, 5, 10 |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 9 RJ45 Gigabit Ethernet LAN ports |
| 4 10G SFP+ LAN ports |
| USB | 2 USB 3.0 ports (front) |
| 2 USB 2.0 ports (front) |
| Video | 1 VGA port |
| Serial Port / Header | 1 COM via RJ45 |
| System BIOS |
| BIOS Type | 128Mb SPI Flash with AMI BIOS |
| Management |
| Software | Watch Dog |
| NMI |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| Chassis |

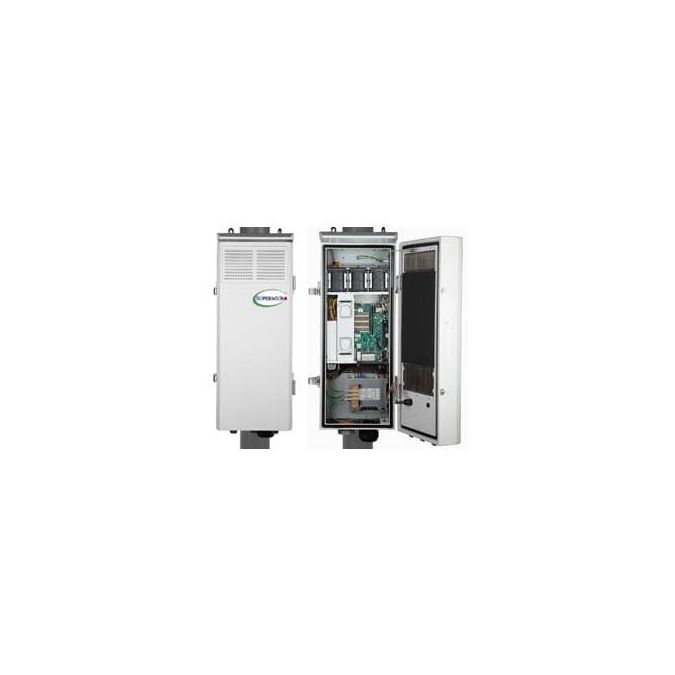

| Form Factor | IP65 Enclosure |
| Model | CSE-B403-IP65 |
| Dimensions and Weight |
| Height | 32.31' (821mm) |
| Width | 12.56' (319mm) |
| Depth | 10.16' (258mm) |
| Weight | Gross Weight: 157 lbs (71.21 kg) |
| Net Weight: 101.5 lbs (46.04 kg) |
| Available Colors | White |
| Front Panel |
| LEDs | Thermal Sensor LED |
| Server Power LED |
| Heater Power LED |
| Main Power LED |
| Fan LED |
| Cabinet Intrusion LED |
| Expansion Slots |
| PCI-Express | 2 PCI-E 3.0 x16 (FH3/4L) slots or 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16 (FH3/4L) slots |
| M.2 | 1 M.2 M-Key , 2280/22110 |
| 1 M.2 E-Key , 2230 |
| 1 M.2 B-Key , 3042 |
| Drive Bays |
| Internal | 4 Internal 2.5' drive bays |
| System Cooling |
| Fans | 3x 80x80mm PWM redundant fans |
| Power |
| Total Power | 900W -44 Vdc to -59 Vdc, support dual power input |
| Server Power | 600W Short depth DC48V input Redundant Power Supplies |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: -40°C ~ 46°C + Solar load (-40°F ~ 114.8°F + Solar load) |
| Product SKUs |
| Product SKUs | SuperServer E403-9D-16C-IPD2 (White) |
