| Motherboard |
| Motherboard | Super X12DPG-QBT6 |
| Processor |
| CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Support CPU TDP 270W |
| Dual Socket P+ (LGA-4189) |
| Cores | Up to 40C/80T, Up to 60MB Cache |
| System Memory |
| Memory | Memory Capacity: 16 DIMM slots |
| Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM |
| Intel® Optane™ persistent memory 200 series |
| Up to 4TB: 16x 256 GB DRAM |
| Up to 6TB: 8x 512 GB PMem |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices |
| SATA | SATA3 (6Gbps), RAID 0/1/5/10 support |
| Chipset | Intel® C621A |
| Network Connectivity | 2x 10GbE BaseT with Broadcom BCM57416 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| Video | 1 VGA port(s) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | Watch Dog |
| NMI |
| KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| OOB Management Package (SFT-OOB-LIC ) |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 7 +1 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | Full-Tower |
| Model | CSE-747BTS-R2K20BP |
| Dimensions and Weight |
| Height | 18.1' (460mm) |
| Width | 7' (178mm) |
| Depth | 26.5' (673mm) |
| Package | 12.7' (H) x 27' (W) x 37.5' (D) |
| Weight | Gross Weight: 57 lbs (25.85 kg) |
| Net Weight: 52.9 lbs (24 kg) |
| Available Color | black |

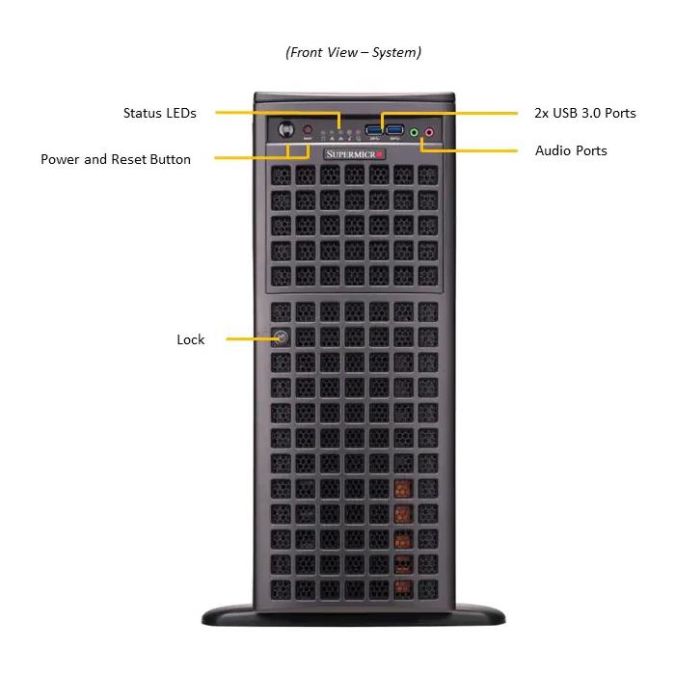

| Front Panel |
| Buttons | System Reset |
| Power On/Off |
| LEDs | System Overheat / Fan Fail LED |
| HDD activity |
| Power On |
| Network activity |
| Drive Bays / Storage |
| Hot-swap | 8x 3.5' hot-swap NVMe/SATA/SAS Support drive bays (4x 2.5' NVMe hybrid) |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 |
| System Cooling |
| Fans | 4 heavy duty fans with optimal fan speed control |
| Power Supply |
| Dimension (W x H x L) | 76 x 40 x 336 mm |
| AC Input | 50-60Hz |
| +12V | Max: 150A / Min: 0A (200Vac-220Vac) |
| Max: 165A / Min: 0A (220Vac-230Vac) |
| Max: 100A / Min: 0A (100Vac-127Vac) |
| Max: 183.3A / Min: 0A (220Vac-240Vac) |
| Max: 174.17A / Min: 0A (230Vac-240Vac) |
| 5V SB | Max: 1A / Min: 0A |
| Output Type | Gold Finger Connector |
| Certification | Titanium Level |
| Total Output Power | 1200W : 100 - 127 Vac |
| 1800W : 200 - 220 Vac |
| 1980W : 220 - 230 Vac |
| 2200W : 220 - 240 Vac (for UL/cUL use only) |
| 2090W : 230 - 240 Vdc (for CCC only) |
| 2090W : 230 - 240 Vac |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Product SKUs |
| Product SKUs | SYS-740GP-TNRBT |
| GPU |
| Supported GPU | NVIDIANVIDIA A30 A100,A40, A30 and RTX A6000 |
| CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | PCIe |
| Expansion Slots |
| PCI-Express (PCIe) | 1 PCIe 4.0 x8 LP slot(s) |
| 4 PCIe 4.0 x16 FHFL slot(s) |
| 2 PCIe 4.0 x16 LP slot(s) |
