| Motherboard |
| Motherboard | Super X12DPG-U6 |
| Processor |
| CPU | Dual Socket P+ (LG-4189) |
| 3 UPI up to 11.2GT/s |
| Support CPU TDP 270W |
| 3rd Gen Intel® Xeon® Scalable Processors |
| Cores | Up to 40C/80T |
| Hardware Accelerator |
| AI Processor | 8x Habana training Gaudi HL-205 OAM |
| System Memory |
| Memory | Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM |
| Memory Capacity: 32 DIMM slots |
| Up to 8TB: 32x 256 GB DRAM |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices |
| Chipset | Intel® C621A |
| Network Connectivity | 1x 10GbE BaseT |
| 6x 400GbE QSFP-DD |
| Note: IPMI LAN port on AI processor tray, two AIOM slots on CPU tray. |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| USB | 2 USB 3.0 port(s) (2 USB) |
| Video | 1 VGA port(s) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | Watch Dog |
| NMI |
| KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| OOB Management Package (SFT-OOB-LIC ) |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 7+1 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 4U Rackmount |
| Model | CSE-428G2 |
| Dimensions and Weight |
| Height | 7' (178mm) |
| Width | 17.6' (447mm) |
| Depth | 32' (813mm) |
| Package | 15' (H) x 27.3' (W) x 49.4' (D) |
| Weight | Gross Weight: 137 lbs (62 kg) |
| Available Color | Silver |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | UID LED |
| Information LED |
| Carrier Board Node LED |
| CPU Node LED |
| PSU Failed LED |
| Drive Bays / Storage |
| Hot-swap | 4x 2.5' hot-swap NVMe/SATA/SAS drive bays (4x 2.5' NVMe hybrid) |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 |
| System Cooling |
| Fans | 5 removable heavy-duty Fan(s) |
| Power Supply |
| Total Output Power | 3000W |
| Dimension (W x H x L) | 106.5 x 82.4 x 203.5 mm |
| AC Input | 2880W: 200-207Vac / 15.7A-16A / 50-60Hz |
| 3000W: 207.1-240Vac / 14.5A-16A / 50-60Hz |
| DC Input | 3000W: 240Vdc / 15A Max |
| Output Type | Backplanes (gold finger) |
| Certification | Titanium Level |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Product SKUs |

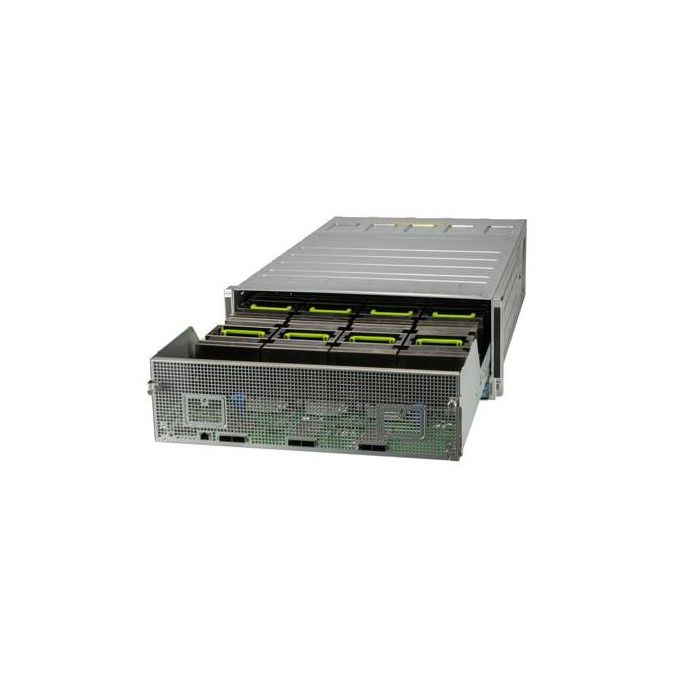

| Product SKUs | SYS-420GH-TNGR |
| Expansion Slots |
| PCI-Express (PCIe) | 1 PCIe 4.0 x16 FHFL slot(s) |
| 2 PCIe 4.0 x16 AIOM slot(s) |
