| Product SKUs |

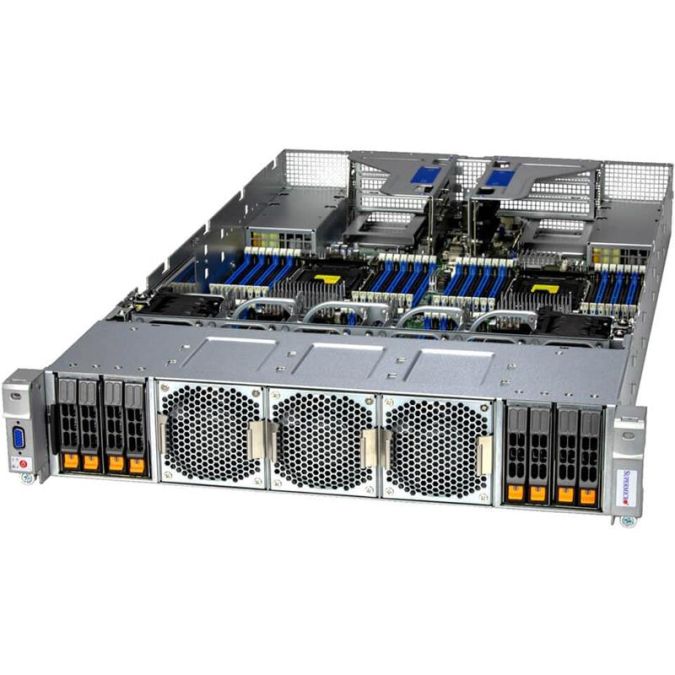

| Product SKUs | SYS-241H-TNRTTP |
| Motherboard |
| Motherboard | Super X13QEH+ |
| Processor |
| CPU | 4th Gen Intel® Xeon® Scalable processors |
| Quad Socket E (LGA-4677) |
| 3 UPI up to 16GT/s |
| Note | CPUs with high TDP (Air Cooled) only supported under specific conditions. Contact Technical Support for details |
| Supports 165W - 350W TDP CPUs (Air Cooled) |
| For SYS-241H-TNRTTP, only SOCKET SCALABLE(-H) is supported: 8490H, 8468H, 8460H, 8454H, 8450H, 8444H, 6448H, 6418H, 6416H and 6434H |
| System Memory |
| Memory | Memory Type: 4800MHz ECC DDR5 RDIMM/RDIMM-3DS |
| Memory Capacity: 64 DIMM slots |
| Up to 16TB: 64x 256 GB DRAM |
| On-Board Devices |
| Chipset | Intel® C741 |
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 port(s) (2 rear) |
| 2 USB 2.0 port(s) (2 front) |
| Video | 1 VGA port(s) |
| 1 DisplayPort (s) |
| Serial Port | 1 COM Port(s) (1 rear) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | Watch Dog |
| NMI |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 4+1 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-218H2TS-R2K7AWP |
| Dimensions and Weight |
| Height | 3.5' (87.9mm) |
| Width | 17.3' (438.4mm) |
| Depth | 32' (812.9mm) |
| Package | 9.75' (H) x 26.5' (W) x 43.5' (D) |
| Weight | Net Weight: 45.5 lbs (20.64 kg) |
| Gross Weight: 71.5 lbs (32.43 kg) |
| Available Color | Black |
| Front Panel |
| Buttons | UID |
| Power On/Off |
| LEDs | HDD activity |
| Power status |
| Network activity |
| System information (overheat/UID) |
| Expansion Slots |
| PCI-Express (PCIe) | 2 PCIe 5.0 x16 FHHL slot(s) |
| 3 PCIe 5.0 x8 FHFL slot(s) |
| 1 PCIe 5.0 x16 FHFL slot(s) |
| 1 PCIe 5.0 x16 AIOM slot(s) |
| 1 PCIe 5.0 x8 AIOM slot(s) |
| 2 PCIe 4.0/5 x8 LP optional slot(s) |
| 2 PCIe 4.0/5 x16 LP optional slot(s) |
| Drive Bays / Storage |
| Hot-swap | 8x 2.5' hot-swap NVMe/SAS3/SATA3 drive bays (Default 8x SATA3 drive bays. NVMe or SAS support requires additional parts. Please see the Optional Parts list.) |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 |
| System Cooling |
| Fans | 2 Heavy duty counter-rotating 6cm Fan(s) |
| 3 Heavy duty counter-rotating 8cm Fan(s) |
| Power Supply |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| AC Input | 2700W: 200-240Vac / 50-60Hz |
| +12V | Max: 225A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 90% (Non-Condensing) |
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
