| Product SKUs |

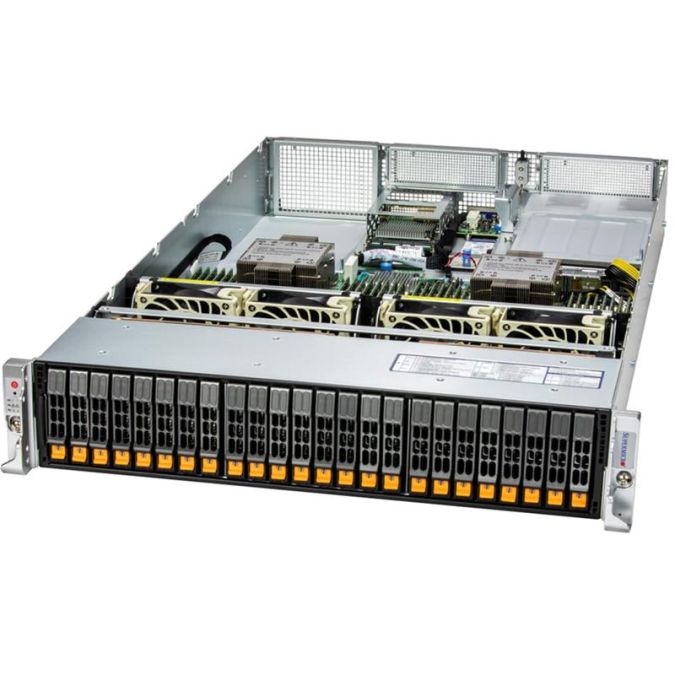

| Product SKUs | SYS-221H-TN24R |
| Motherboard |
| Motherboard | Super X13DEM |
| Processor |
| CPU | Dual Socket E (LGA-4677) |
| 4th Gen Intel® Xeon® Scalable processors |
| Intel Xeon CPU Max Series with high bandwidth memory (HBM) |
| Note | Supports up to 350W TDP CPUs (Air-Cooled) |
| Supports up to 350W TDP CPUs (Liquid-Cooled) |
| System Memory |
| Memory | Memory Capacity: 32 DIMM slots |
| Up to 8TB: 32x 256 GB DRAM |
| Memory Type: 4800MHz ECC DDR5 |
| Memory Voltage | 1.1 V |
| Error Detection | ECC |
| On-Board Devices |
| Chipset | Intel® C741 |
| Network Connectivity | 2x 1GbE BaseT with Intel® i350-AM2 (optional) |
| 2x 10GbE SFP+ with Intel® X710-BM2 (optional) |
| 4x 10GbE SFP+ with Intel® XL710-BM1 (optional) |
| 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional) |
| 2x 25GbE SFP28 with Broadcom® BCM57414 (optional) |
| 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional) |
| 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional) |
| 2x 10GbE BaseT with Intel® X550-AT2 (optional) |
| 4x 1GbE BaseT or 4x 1GbE SFP with Intel® i350-AM4 (optional) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| SATA | SATA3 (6Gbps), RAID 0/1/5/10 support |
| NVMe | NVMe, RAID 0/1/5/10 support (Intel® VROC RAID Key required) |
| Input / Output |
| LAN | 1 RJ45 Dedicated BMC LAN port |
| USB | 2 USB 2.0 port(s) (2 rear) |
| Video | 1 VGA port(s) |
| System BIOS |
| BIOS Type | AMI 256MB SPI Flash |
| Management |
| Software | Watch Dog |
| NMI |
| KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-HS219-R1K63P |
| Dimensions and Weight |
| Height | 3.5' (88.9mm) |
| Width | 17.2' (437mm) |
| Depth | 29.9' (760mm) |
| Package | 10.4' (H) x 23.8' (W) x 43.6' (D) |
| Weight | Net Weight: 40 lbs (18.2 kg) |
| Gross Weight: 66 lbs (30 kg) |
| Available Color | N/A |
| Front Panel |
| Buttons | UID button |
| Power On/Off |
| LEDs | HDD activity |
| LAN1 activity |
| System information |
| Power |
| Expansion Slots |
| PCI-Express (PCIe) | 4 (Optional) PCIe 5.0 x16 or x8 FH, 10.5'L slot(s) |
| 4 (Optional) PCIe 5.0 x8 FH, 10.5'L slot(s) |
| Note | For 16 NVMe configurations, PCIe slots 1,2 and AIOM slot A2 cannot be used. |
| For 24 NVMe configurations, PCIe slots 1,2,5,6 and AIOM slot A2 cannot be used. |
| Drive Bays / Storage |
| Hot-swap | 24x 2.5' hot-swap NVMe/SATA/SAS drive bays (NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.) |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 |
| M-Key, 2280/2210 |
| System Cooling |
| Fans | 4x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 2 Air Shroud(s) |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply |
| Dimension (W x H x L) | 73.5 x 40 x 265 mm |
| AC Input | 1000W: 100-127Vac / 12A-9A / 50-60Hz |
| 1600W: 200-240Vac / 9A-7.5A / 50-60Hz |
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) |
| Max: 133.3A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
