| Product SKUs |

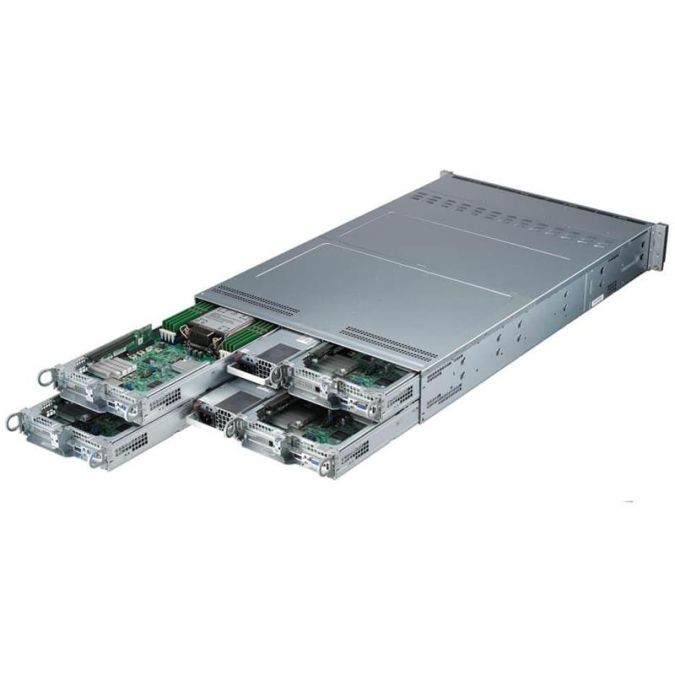

| Product SKUs | SYS-211TP-HPTR |
| Motherboard |
| Motherboard |
| Processor (per Node) |
| CPU | Single Socket E (LGA-4677) |
| 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Core Count | Up to 60C/120T, Up to 300MB Cache |
| Note | Supports 85W - 270W TDP CPUs (Air Cooled) |
| System Memory (per Node) |
| Memory | Slot Count: 8 DIMM slots/1 Channels |
| Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices (per Node) |
| SATA | SATA (6Gbps) |
| Chipset | Intel® C741 |
| Network Connectivity | View AOC Options |
| 2 SFP+ 10GbE with Intel® X710-BM2 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output (per Node) |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| 2 SFP+ 10 GbE LAN port(s) (IPMI shared on LAN port 1) |
| USB | 2 USB 3.2 Gen1 Type-A port(s) (rear) |
| Video | 1 VGA port(s) (Rear) |
| System BIOS |
| BIOS Type | AMI 256MB SPI Flash |
| BIOS Features | RTC (Real Time Clock) Wakeup |
| SPI dual/quad speed support |
| SMBIOS 3.5 or later |
| UEFI 2.9 |
| Riser Card audio detection support |
| ACPI Power Management 6.4 |
| PCI firmware 4.0 |
| Management |
| Software | KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| IPMI 2.0 |
| Supermicro Power Manager (SPM) |
| Supermicro Update Manager (SUM) |
| Supermicro Server Manager (SSM) |
| Super Diagnostics Offline |
| Power configurations | ACPI Power Management |
| Power-on mode for power recovery |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support, PEPI |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-217HQ+-R2K04BP4 |
| Dimensions and Weight |
| Height | 3.5' (88 mm) |
| Width | 17.25' (438 mm) |
| Depth | 28.75' (730 mm) |
| Package | 9.8' (H) x 20.7' (W) x 38' (D) |
| Weight | Gross Weight: 90 lbs (40.8 kg) |
| Net Weight: 70 lbs (31.8 kg) |
| Available Color | Black front & silver body |
| Front Panel |
| LED | Power status LED |
| Network activity LED |
| System information (overheat/UID) LED |
| Buttons | Power On/Off button |
| UID button |
| Expansion Slots (per Node) |
| PCI-Express (PCIe) Configuration |
| Drive Bays / Storage (per Node) |
| Drive Bays Configuration | View Drive Options |
| Default: Total 6 bay(s) 6 front hot-swap 2.5' SATA drive bay(s) |
| 6 front hot-swap 2.5' SATA drive bay(s) |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 2280/22110/25110, VROC required for RAID) |
| System Cooling |
| Air Shroud | 4 Air Shroud(s) |
| Fans | 4 heavy duty fans with optimal fan speed control 8cm Fan(s) |
| Power Supply |
| Dimension (WxHxL) | 76 x 40 x 336 mm |
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) |
| Max: 150A / Min: 0A (200Vac-220Vac) |
| Max: 165A / Min: 0A (220Vac-230Vac) |
| Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only) |
| Max: 166.7A / Min: 0A (230Vac-240Vac) |
| 5V SB | Max: 1A / Min: 0A |
| AC Input | 1000W: 100-127Vac / 50-60Hz |
| 1800W: 200-220Vac / 50-60Hz |
| 1980W: 220-230Vac / 50-60Hz |
| 2000W: 230-240Vac / 50-60Hz |
| 2000W: 200-240Vac / 50-60Hz (for UL/cUL only) |
| Output Type | Backplanes (gold finger) |
| Certification | Titanium Level |
| [Test Report] |
| Operating Environment |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) |
| Non-operating Temperature: 0°C to 70°C (32°F to 140°F) |
