| Motherboard |
| Motherboard | Super X12SPT-PT |
| Processor (per Node) |
| CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Single Socket P+ (LGA-4189) |
| Support CPU TDP 85-270W |
| Please contact Supermicro Technical Support for supporting conditions of high power (TDP >,240W) processors. |
| Cores | Up to 32C/64T, Up to 48MB Cache |
| System Memory (per Node) |
| Memory | Memory Capacity: 8 DIMM slots |
| Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices (per Node) |
| SATA | SATA3 (6Gbps) |
| Chipset | Intel® C621A |
| Network Connectivity | 2x 10GbE port(s) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output (per Node) |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 2x 10 GbE SFP+ (LAN1 shared with IPMI) |
| USB | 2 USB 3.2 Gen1 port(s) (2 USB) |
| Video | 1 VGA port(s) |
| Others | SFP+ support 1GbE/10GbE |
| System BIOS |
| BIOS Type | AMI 32MB UEFI |
| Management |
| Software | Watch Dog |
| NMI |
| KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| Power Configurations | ACPI Power Management |
| Power-on mode for power recovery |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support, PEPI |
| Chassis |

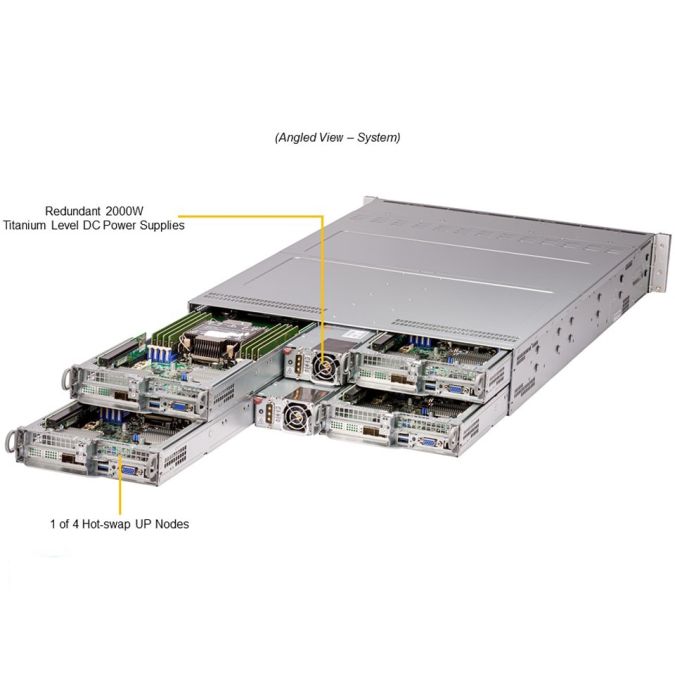

| Form Factor | 2U Rackmount |
| Model | CSE-217HQ+-R2K04BP4 |
| Dimensions and Weight |
| Height | 3.5' (88mm) |
| Width | 17.25' (438mm) |
| Depth | 28.75' (730mm) |
| Package | 9.8' (H) x 20.7' (W) x 38' (D) |
| Weight | Net Weight: 70 lbs (31.8 kg) |
| Gross Weight: 90 lbs (40.8 kg) |
| Available Color | Silver |
| Front Panel |
| Buttons | Power On/Off button |
| UID button |
| LEDs | Power status LED |
| System information (overheat/UID) LED |
| Network activity LED |
| Drive Bays / Storage (per Node) |
| Hot-swap | 6x 2.5' hot-swap SATA drive bays |
| M.2 | 2 M.2 NVMe |
| M-Key, 2280/22110 |
| System Cooling |
| Air Shroud | 4 Air Shroud(s) Air Shroud(s) |
| Power Supply |
| Total Output Power | 2000W : (-45) - (-66) Vdc |
| Dimension (W x H x L) | 76 x 40 x 360 mm |
| +12V | Max: 166.6A |
| 5V SB | Max: 6A |
| Certification |
| Operating Environment |
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) |
| Non-operating Temperature: 0°C to 70°C (-40°F to 158°F) |
| Product SKUs |
| Product SKUs | SYS-210TP-HPTRD |
| Expansion Slots (per Node) |
| PCI-Express (PCIe) | 2 PCIe 4.0 x16 LP slot(s) |
