| Motherboard |
| Motherboard | Super X12SPG-NF |
| Processor (per Node) |
| CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Support CPU TDP 270W |
| Single Socket P+ (LGA-4189) |
| Cores | Up to 40C/80T, Up to 60MB Cache |
| GPU |
| GPU-GPU Interconnect | PCIe |
| Supported GPU | NVIDIANVIDIA A30 A30, A40, A100, RTX-A4000 |
| Certification |
| System Memory (per Node) |
| Memory | Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM |
| Memory Capacity: 8 DIMM slots |
| Up to 2TB: 8x 256 GB DRAM |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices (per Node) |
| Chipset | Intel® C621A |
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output (per Node) |
| Video | 1 VGA port(s) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | Watch Dog |
| NMI |
| KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| OOB Management Package (SFT-OOB-LIC ) |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 7 +1 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |

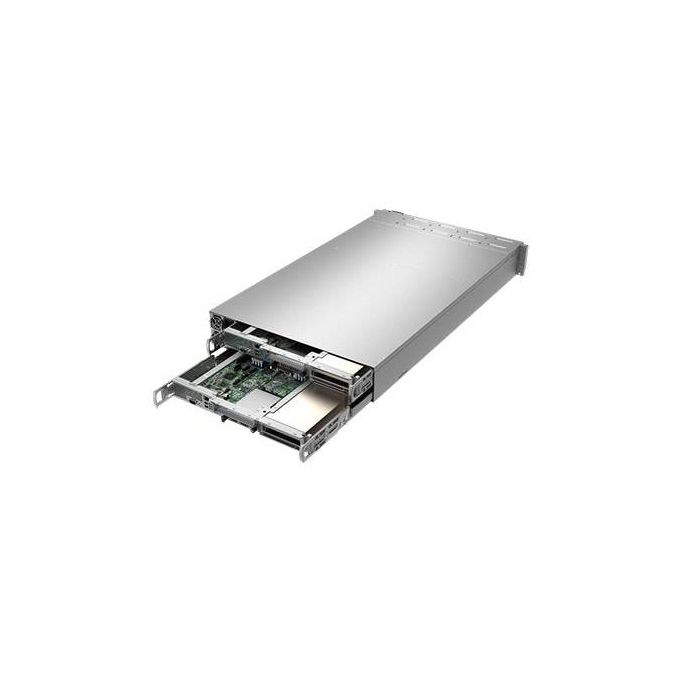

| Form Factor | 2U Rackmount |
| Model | CSE-227GTS-R2K63P |
| Dimensions and Weight |
| Height | 3.47' (88mm) |
| Width | 17.6' (447mm) |
| Depth | 29.9' (760mm) |
| Package | 9.44' (H) x 23.62' (W) x 43.3' (D) |
| Weight | Net Weight: 55 lbs (24.94 kg) |
| Gross Weight: 60 lbs (27.21 kg) |
| Available Color | Black Front & Silver Body |
| Front Panel |
| Buttons | Power On/Off button |
| System UID button/LED |
| LEDs | Network activity LEDs |
| Hard drive activity LED |
| Power status LED |
| Information LED as manual description |
| Drive Bays / Storage (per Node) |
| Hot-swap | 2x 2.5' hot-swap NVMe Support drive bays (2x 2.5' NVMe dedicated) |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 |
| System Cooling |
| Fans | 4 Removable heavy-duty Fan(s) |
| Power Supply |
| Dimension (W x H x L) | 73.5 x 40 x 265 mm |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| AC Input | 2600W: 200-240Vac / 15A Max |
| DC Input | 2600W: 200-240Vdc For CQC Only/ 15A Max / 50-60Hz |
| +12V | Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Product SKUs |
| Product SKUs | SYS-210GP-DNR |
| Expansion Slots (per Node) |
| PCI-Express (PCIe) | 3 PCIe 4.0 x16 FHFL DW slot(s) |
