| Product SKUs |

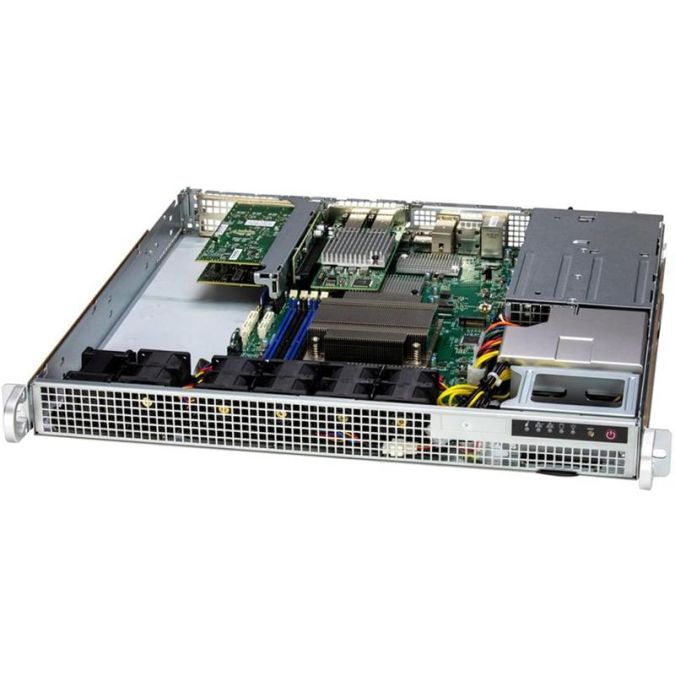

| Product SKUs | SYS-111AD-WRN2 |
| Motherboard |
| Motherboard | Super X13SAW-F |
| Processor |
| CPU | Single LGA-1700 |
| 12th/13th Gen Core i9/i7/i5/i3 Processor |
| Note | Supports up to 80W TDP CPUs (Air Cooled) |
| System Memory |
| Memory | Slot Count: 4 DIMM slots |
| Max Memory (2DPC): Up to 128GB ECC DDR5 UDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Chipset | Intel® R680E |
| Network Connectivity | View AOC Options |
| 2 RJ45 2.5GbE with Intel® I226 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| 2 RJ45 2.5 GbE LAN port(s) (Intel® I226) |
| USB | 2 port(s) |
| Video | 1 VGA port(s) |
| 2 DisplayPort 1.4a port(s) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash |
| BIOS Features | ACPI 6.5 SMBIOS 3.6 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support |
| Management |
| Software | KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| IPMI 2.0 |
| Supermicro Update Manager (SUM) |
| Supermicro Server Manager (SSM) |
| Super Diagnostics Offline |
| Power configurations | 800W 100-240Vac Platinum Single Power Supply (can be upgraded to redundant power supply) |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| Temperature | Platform Environment Control Interface (PECI) 3.0 support |
| SuperDoctor® 5 |
| System resource alert via SuperDoctor®5 |
| Chassis |
| Form Factor | 1U |
| Model | CSE-514-R00RWNP |
| Dimensions and Weight |
| Height | 1.7' (43 mm) |
| Width | 17.2' (437 mm) |
| Depth | 16.9' (429 mm) |
| Package | 8' (H) x 27' (W) x 24' (D) |
| Weight | Gross Weight: 25.2 lbs (11.43 kg) |
| Available Color | No Paint |
| Front Panel |
| LED | Power status LED |
| HDD activity LED |
| Fan Fail/System Over Heat LED |
| Network Activity LEDs |
| Buttons | Power On/Off button |
| System Reset button |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: Total 2 bay(s) 2 internal fixed 2.5' NVMe/SAS/SATA drive bay(s) |
| 2 internal fixed 2.5' NVMe/SAS/SATA drive bay(s) |
| View Drive Options |
| M.2 | 2 M.2 NVMe slot(s) (M-key 2280/22110) |
| 1 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 2280) |
| 1 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 2280/22110) |
| System Cooling |
| Fans | 5 Heavy duty counter-rotating 4cm Fan(s) |
| Power Supply |
| Dimension (WxHxL) | 54.5 x 40 x 220 mm |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) |
