| Motherboard |
| Motherboard | Super X12SCZ-TLN4F |
| Processor |
| CPU | Single Socket H5 (LGA-1200) |
| 10th Gen Intel® Core™ i9/i7/i5/i3, Intel® Xeon® W-1200 Processors |
| Support CPU TDP 35-80W |
| Cores | Up to 10C/20T, Up to 20MB Cache |
| System Memory |
| Memory | Memory Capacity: 4 DIMM slots |
| Memory Type: 2933MHz ECC DDR4 UDIMM |
| Up to 128GB: UDIMM |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices |
| SATA | SATA3 (6Gbps), RAID 0/1 support |
| Chipset | Intel® W480E |
| Network Connectivity | 2x 1GbE BaseT |
| 2x 10GbE BaseT |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| SATA | 2 SATA (6Gbps) port(s) |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 2 RJ45 10GBase-T LAN ports |
| 2 RJ45 GbE LAN ports |
| USB | 4 USB 3.0 port(s) (4 rear) |
| Video | 1 VGA port(s) |
| DOM | 1 Super DOM (Disk on Module) port |
| Others | 1x DP |
| 1x DVI-D |
| Management |
| Software | AMT |
| vPro |
| SuperDoctor® 5 |
| IPMI 2.0 |
| SUM |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support, PEPI |
| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-510FT-203B |
| Dimensions and Weight |
| Height | 1.7' (43mm) |
| Width | 17.2' (437mm) |
| Depth | 11.3' (287mm) |
| Package | 6.1' (H) x 25.4' (W) x 19.8' (D) |
| Weight | Net Weight: 10 lbs (4.54 kg) |
| Gross Weight: 14.1 lbs (6.4 kg) |
| Available Color | Black |
| Front Panel |
| Buttons | UID button |
| Power On/Off |
| LEDs | HDD activity |
| Power status |
| LAN1 activity |
| System information |
| LAN2 activity |
| Drive Bays / Storage |
| Drive Bays | 2x 2.5' SATA drive bays |
| M.2 | 1 M.2 NVMe OR 1 M.2 SATA3 |
| M-Key / E-Key, 2280/22110 / 2230 |
| System Cooling |
| Fans | 4x 4-PIN PWM 40x28mm Fan(s) |
| Power Supply |
| Dimension (W x H x L) | 76.5 x 40.3 x 192.8 mm |
| AC Input | 200W: 100-240Vac / 2.6A Max / 50-60Hz |
| +12V | Max: 16A / Min: 0A (100Vac-240Vac) |
| Certification | Gold Level |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C ~ 40°C (41°F ~ 104°F) |
| Product SKUs |

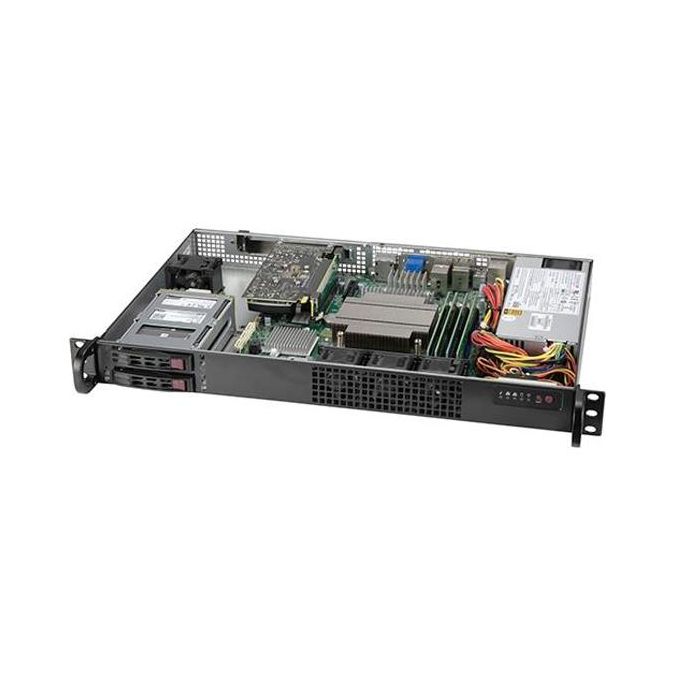

| Product SKUs | SYS-110C-FHN4T |
| Expansion Slots |
| PCI-Express (PCIe) | 1 PCIe 3.0 x16 HHHL slot(s) |
