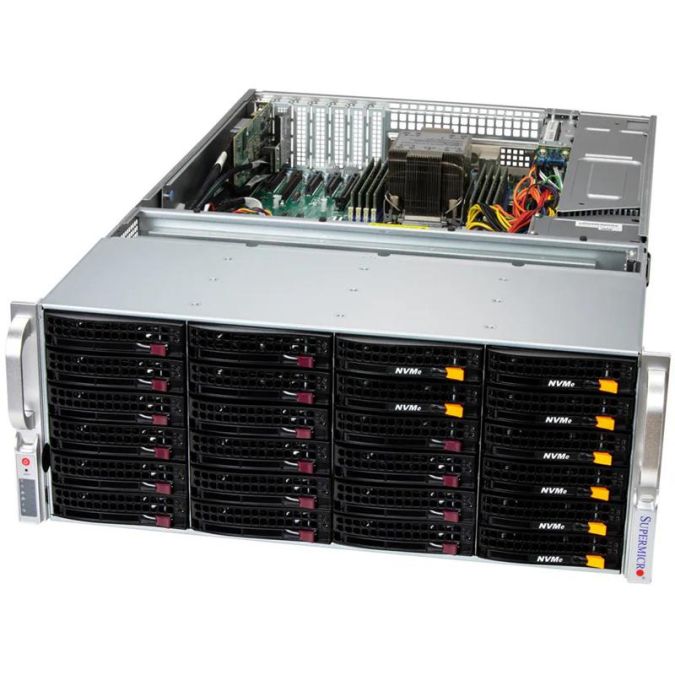

Supermicro SSG-542B-E1CR36H Storage 4U Barebone Single Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores
| Applicability | AI / ML — server platform / infrastructure |
|---|---|
| Manufacturer | Supermicro |
| SKU | SSG-542B-E1CR36H |
| Product Type | Storage Server / JBOF-JBOD Platform |
1. HW RAID by Broadcom® SAS3916 connected on all 2.5'/3.5' drive bays
2. Single Intel® Xeon® 6700/6500 series processor up to 350W TDP
3. Up to 2TB DDR5-6400MT/s ECC Registered in 8 DIMM slots (1DPC)
4. 2 onboard 10GbE ports via Intel® X550 and 1 GbE port for BMC via Aspeed AST2600
5. Six total PCIe slots: 3 PCIe 5.0 x8 + 3 PCIe 5.0 x16 slots * * Slot 1 & 2 are occupied by system's default controller and JBOD module
6. 4U hybrid hot-swap NVMe/SAS3/SATA3 main(3.5' x 36) and rear(2.5' x 2) drive bays * * up to total 10 NVMe ports in the system
7. 1600W Redundant Titanium Level (96%) Hot-plug power supplies
