| Motherboard |
| Motherboard | Super X12SPI-TF |
| Processor |
| CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Support CPU TDP 270W |
| Single Socket P+ (LGA-4189) |
| Cores | Up to 38C/76T, Up to 57MB Cache |
| System Memory |
| Memory | Intel® Optane™ persistent memory 200 series |
| Memory Capacity: 8 DIMM slots |
| Memory Type: 3200MHz ECC DDR4 RDIMM,LRDIMM |
| Up to 2TB: 8x 256 GB DRAM |
| Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices |
| SATA | SATA3 (6Gbps) via C621A Chipset, RAID 0, 1, 5, 10 support |
| SAS | SAS3 (12Gbps) via Broadcom 3916, RAID 0, 1, 5, 6, 10, 50, 60 support |
| Chipset | Intel® C621A |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 2 RJ-45 10Gbase-T ports |
| USB | 4 USB 3.0 port(s) (4 Rear_USB) |
| Video | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 rear) |
| DOM | 2 Super DOM (Disk on Module) port |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | Watch Dog |
| NMI |
| SuperDoctor® 5 |
| IPMI 2.0 |
| SUM |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 4+1 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 4U Rackmount |
| Model | CSV-946STS-R1K6LPP |
| Dimensions and Weight |
| Height | 7' |
| Width | 17.2' |
| Depth | 30.2' (767mm) |
| Package | 33.25' (H) x 28' (W) x 42.5' (D) |
| Weight | Net Weight: 117 lbs (53 kg) |
| Gross Weight: 169.5 lbs (76.9 kg) |
| Available Color | Black |
| Front Panel |
| Buttons | Power On/Off |
| LEDs | HDD activity |
| Power status |
| Network activity |
| System information (overheat/UID) |
| Drive Bays / Storage |

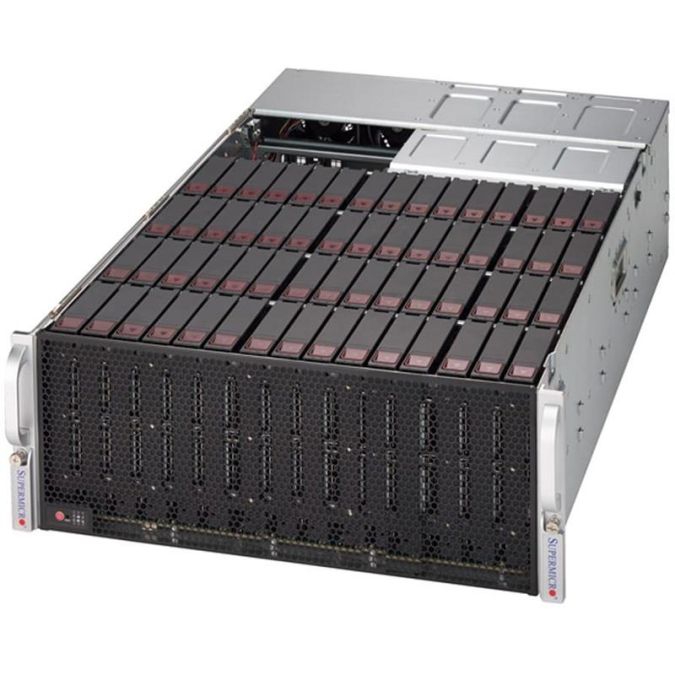

| Hot-swap | 60x 3.5' hot-swap SATA3/SAS3 drive bays |
| M.2 | 1x PCIe 3.0 x4 and SATA |
| System Cooling |
| Fans | 5 Heavy Duty 8cm Fan(s) |
| Power Supply |
| Dimension (W x H x L) | 73.5 x 40 x 265 mm |
| AC Input | 1000W: 100-127Vac / 12A-9A / 50-60Hz |
| 1600W: 200-240Vac / 9A-7.5A / 50-60Hz |
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) |
| Max: 133.3A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 90% (Non-Condensing) |
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
| Product SKUs |
| Product SKUs | SSG-540P-E1CTR60H |
| Expansion Slots |
| PCI-Express (PCIe) | 2 PCIe 4.0 x16 LP slot(s) |
| 3 PCIe 4.0 x8 LP slot(s) |
