| Main Specifications |

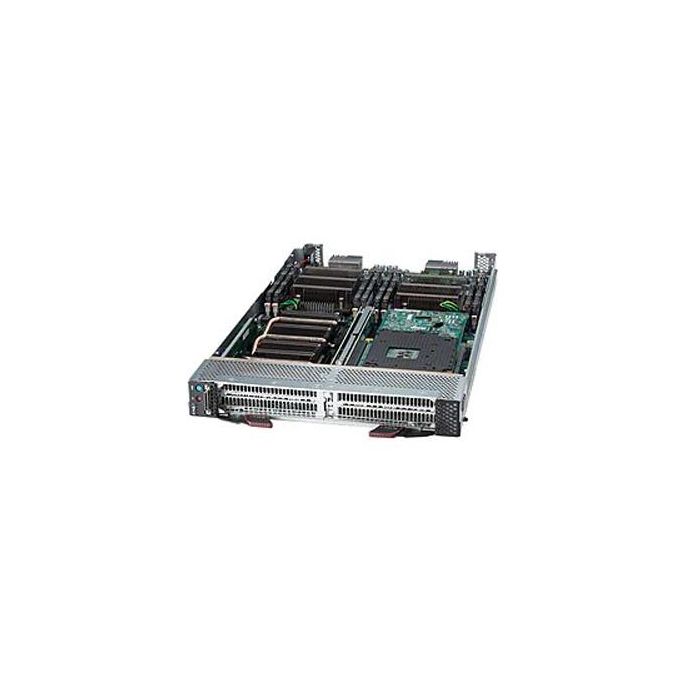

| Device Type | GPU SuperBlade SBI-7127RG |
| Built-in Devices | Super B9DRG |
| Dimensions (WxDxH) | Height 11.32' (288 mm) x Width 1.67' (42.4 mm) x Depth 20.5' (520mm) |
| Weight | 8.6 lbs (3.9 kg) |
| Enclosure Color | Black |
| Processor |
| Compatible Processors | Intel Xeon processor E5-2600 and E5-2600 v2 family |
| Compatible Socket | Dual Socket R (LGA 2011) |
| Cache | Up to 30MB |
| System Bus | QPI up to 8 GT/s |
| System Memory |
| Memory Capacity | 8x 240-pin DDR3 DIMM slots, Supports up to 256GB DDR3 ECC Registered memory (RDIMM), Supports up to 64GB DDR3 ECC Unbuffered memory (UDIMM) |
| Memory Type | 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | 1.5 V and 1.35 V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory), Supports Intel x4 and x8 Single Device Data Correction (SDDC) |
| On-Board Devices |
| Chipset | Intel C602 Chipset |
| Infiniband Support | 4x QDR (40Gbps) InfiniBand or 10GbE mezzanine HCA (Optional) |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) |
| Super I/O | Nuvoton W83527 |
| Network Controllers | Intel I350 Dual port Gigabit Ethernet, Intel I/OAT 3 support for fast, scaleable, and reliable networking, VMDq support for better performance of virtualization |
| System BIOS |
| BIOS Type | 64Mb SPI Flash EEPROM with AMI® BIOS |
| BIOS Features | Plug and Play (PnP), PCI 2.2, ACPI up to 3.0, USB Keyboard support |
| Front Panel |
| Buttons | Power On/Off button, KVM button |
| LEDs | Power LED, UID / KVM LED, Network Activity LED, Fault LED |
| Connector | SUV (Serial/USB/Video) & KVM Connector |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2 (x16) PCI-E 2.0 (FH/HL), (Optional) supports up to 2x Fermi 2070/2050 GPUs (not included) |
| Expansion Bays Total (Free) | 1x SATA Disk on Module |
| Input / Output |
| KVM | 1 Front Connector for Supermicro KVM Card |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Electromagnetic Compatibility (EMC) |
| United States / Canada | FCC- Emissions (US) Verification |
| Europe | EN55022 - Emissions, EN55024 - Immunity, EN61000-3-2 - Harmonics, EN61000-3-3 - Voltage Flicker, CE - EMC Directive 89/336/EEC |
| Parts List - (Items Included) |
| Motherboard / Chassis | 1x MBD-B9DRG-O-P, 1x CSE-710M-00GB |
| Front Panel Control | 1x MCP-280-KVMG-O-P |
| Riser Cards | 1x RSC-BLG-E16G-O-P, 1x RSC-BLG-E16GR-O-P |
