| Main Specifications |

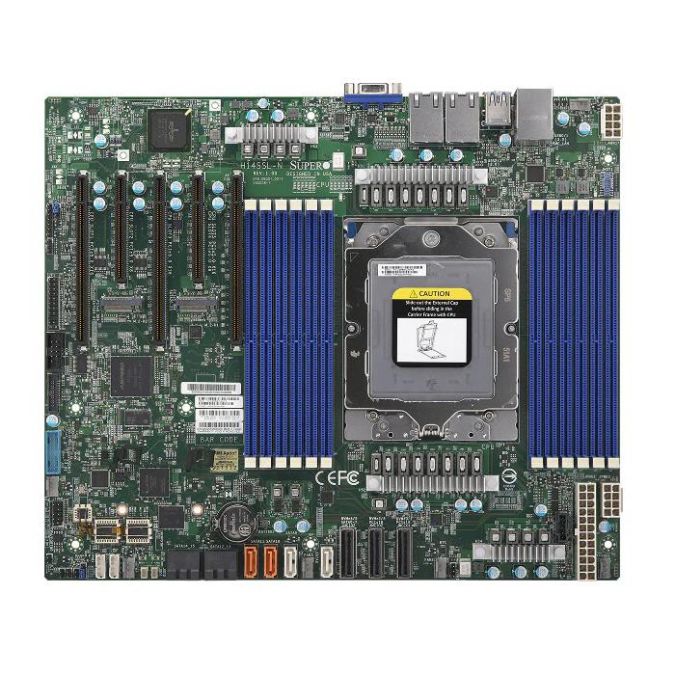

| Device Type | Mainstream Server Board |
| Form Factor | ATX |
| Dimensions (WxDxH) | 12' x 10.1' (30.48cm x 25.65cm) |
| Processor |
| Compatible Processors | AMD EPYC 9005 Series Processors |
| Compatible Socket | Single Socket SP5 |
| Number of Cores | Up to 192C/384T |
| Miscellaneous |
| Note | Supports up to 500W TDP CPUs |
| System Memory |
| Memory Capacity | Slot Count: 12 DIMM Slots, Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM/3DS RDIMM |
| DIMM Sizes | RDIMM/3DS RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | System on Chip |
| Network Controllers | Dual LAN with Broadcom BCM5720 1GBase-T |
| TPM | 1 TPM Header |
| Others | 1 MCIO (PCIe 5.0 x8/SATA3) Hybrid port(s), 2 MCIO (PCIe 5.0 x8/SATA3) port(s) |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB(s) | 2 USB 3 port(s) (Header), 4 USB 3 port(s) |
| Video Output | 1 VGA port(s) |
| Serial Port / Headers | 1 COM port(s) (header) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 3 PCIe 5.0 x16 (in x16) slots, 2 PCIe 5.0 x8 slots |
| M.2 | 2 M.2 PCIe 4.0 x4 SATA slots (M-key 2280/22110) |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, Plug-ins for 3rd Party Software |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Memory |
| Voltage | +12V,+3.3V,+5V,+5V standby,1.8V standby,3.3V standby,CPU temperature,CPU thermal trip support,Memory temperature,VBAT,VRM temperature |
| PC Health Monitoring |
| LED | BMC/IPMI Heartbeat LED, UID/remote UID LED |
| FAN | 6x 4-pin fan headers (up to 6 fans) |
| Other Features | RoT |
| Parts List |
| I/O Shield | 1x MCP-260-00073-0N |
| I/O Cables | 6x CBL-0044L |
