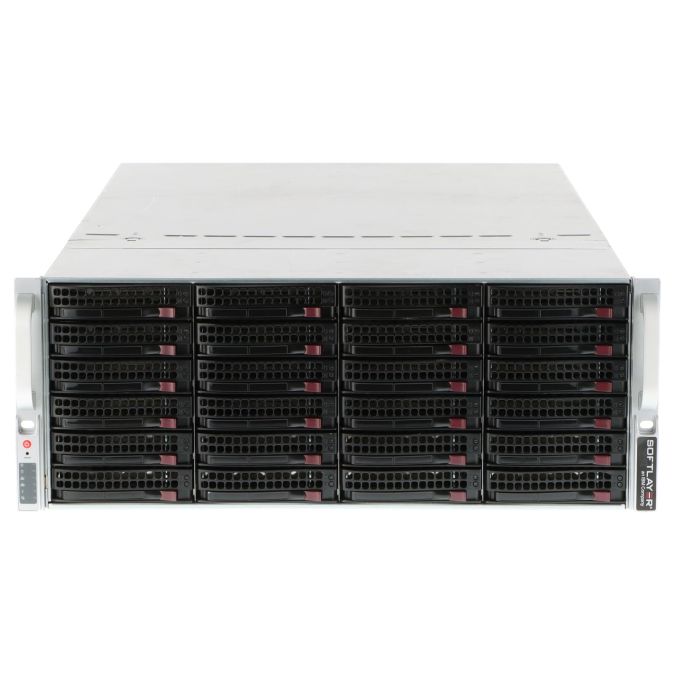

Supermicro CSE-848X Server 4x 10C Xeon E7-4820 v4 2GHz 256GB 24xLFF 9361-8i
| MPN | BPN-SAS3-846EL1 |
|---|---|
| Applicability | Server |
| Manufacturer | Supermicro |
| SKU | 10009905 |
| Product Type | Server |
Supermicro CSE-848X Server 4x 10C Xeon E7-4820 v4 2GHz 256GB 24xLFF 9361-8i is an enterprise hardware item from Supermicro, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Supermicro
- SKU: 10009905
- Stock status: InStock
- Corresponding P/Ns: BPN-SAS3-846EL1 CSE-848X SuperServer 8048B-TR4FT SYS-8048B-TR4FT X10QBi X10QBi-MEM2 Rev 1.20
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Processor | Intel Xeon |
| Processor type | Xeon E7-4820 v4 |
| Number of CPUs | 4 |
| Number of CPU sockets | 4 |
| Processor clock (MHz) | 2000 |
| Processor cache (MB) | 25 |
| Number of cores per CPU | 10 |
| Working memory (GB) | 256 |
| Memory type | DDR4 RAM |
| Hard disc type | SAS/SATA LFF |
| Graphics card onboard | Yes |
| Number of power supply units | 4 |
| Max. number of power supply units | 4 |
| Type of construction | Rack |
| Hard drives - further HDDs or frames on request | |
| Total capacity (GB) | 0 |
| max. hard discs | 24 |
| PCI devices onboard | |
| Device_1 | 10 Gigabit Ethernet Controller X540-AT2 |
| Device_3 | LSI MegaRAID SAS 9361-8i 12G RAID controller + BBU |
| Device_4 | Intelligent Platform Management Interface v2.0 (IPMI 2.0) |
| Expansion slots | |
| PCIe x8 | 3 |
| PCIe x16 | 3 |
| Connections | |
| VGA | 1 |
| 10 Gigabit Ethernet, RJ-45 | 2 |
| Management | 1 |
| Serial Port | 1 |
| USB | 2 |
| Note | |
| CPU support | Xeon E7-48xx/88xx v3 and Xeon E7-48xx/88xx v4 |
Included in delivery: Item as described incl. 8 memory boards incl. Hard disk frame (with screws) incl. Power cable w/o manual w/o Rack mounting rails w/o Software/driver
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
| MPN | BPN-SAS3-846EL1 |
|---|---|
| Applicability | Server |
| Manufacturer | Supermicro |
| SKU | 10009905 |
| Product Type | Server |
