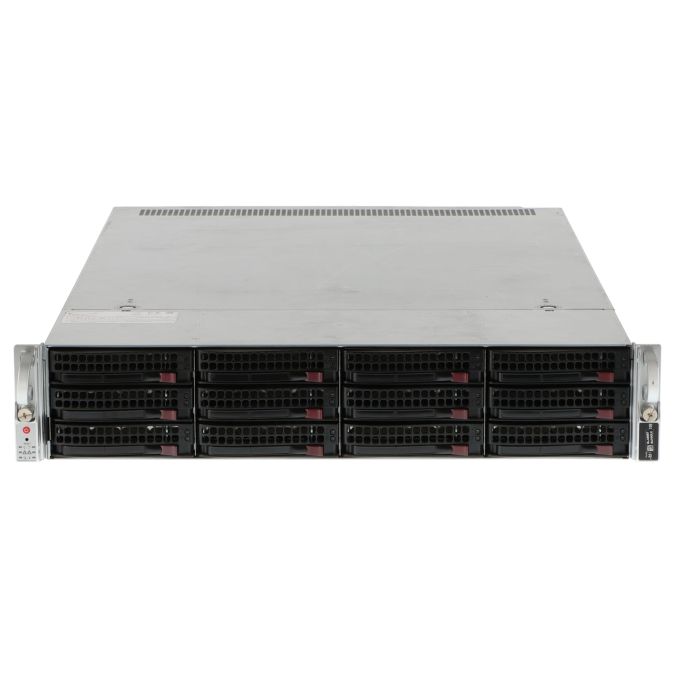

Supermicro CSE-829U X11DPU Server 2x Gold 6128 6C 3,4GHz 256GB 8x SAS 4x NVME
| MPN | 6029U-E1CRT |
|---|---|
| Applicability | Server |
| Manufacturer | Supermicro |
| SKU | 30008593 |
| Product Type | Server |
Supermicro CSE-829U X11DPU Server 2x Gold 6128 6C 3,4GHz 256GB 8x SAS 4x NVME is an enterprise hardware item from Supermicro, suitable for server and data-center environments. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Supermicro
- SKU: 30008593
- Category: Server / Supermicro / SuperServer X11
- Stock status: InStock
- Corresponding P/Ns: 6029U-E1CRT CSE-829U CSE-829U2E1C4-R1K02-T SuperServer 6029U-E1CRT SYS-6029U-E1CR4T X11DPU
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Processor | Intel Xeon |
| Processor type | Xeon Gold 6128 |
| Number of CPUs | 2 |
| Number of CPU sockets | 2 |
| Processor clock (MHz) | 3400 |
| Number of cores per CPU | 6 |
| Working memory (GB) | 256 |
| Memory type | DDR4 RAM |
| Hard disc type | 8x SAS/SATA LFF - 4x SAS/NVMe LFF |
| Hot plug | Yes |
| Graphics card onboard | Yes |
| Number of power supply units | 2 |
| Max. number of power supply units | 2 |
| Power per power supply unit (watts) | 1000 |
| Type of construction | Rack |
| Hard drives - further HDDs or frames on request | |
| Total capacity (GB) | 0 |
| max. hard discs | 12 |
| PCI devices onboard | |
| Device_1 | 10 Gigabit Ethernet Controller X540-AT2 |
| Device_2 | LSI MegaRAID SAS 9361-8i 12G RAID controller + BBU |
| Device_4 | Intelligent Platform Management Interface v2.0 (IPMI 2.0) |
| Expansion slots | |
| PCIe x8 Low Profile, Modular RAID controller only | 1 |
| PCIe 3.0 x8 Low Profile | 1 |
| PCIe 3.0 x16 | 3 |
| Connections | |
| VGA | 1 |
| 10 Gigabit Ethernet, RJ-45 | 4 |
| Management | 1 |
| Serial Port | 1 |
| USB 3.0 | 3 |
Included in delivery: Item as described incl. 12x hard disk frames with screws incl. Power cable w/o Rack mounting rails
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
