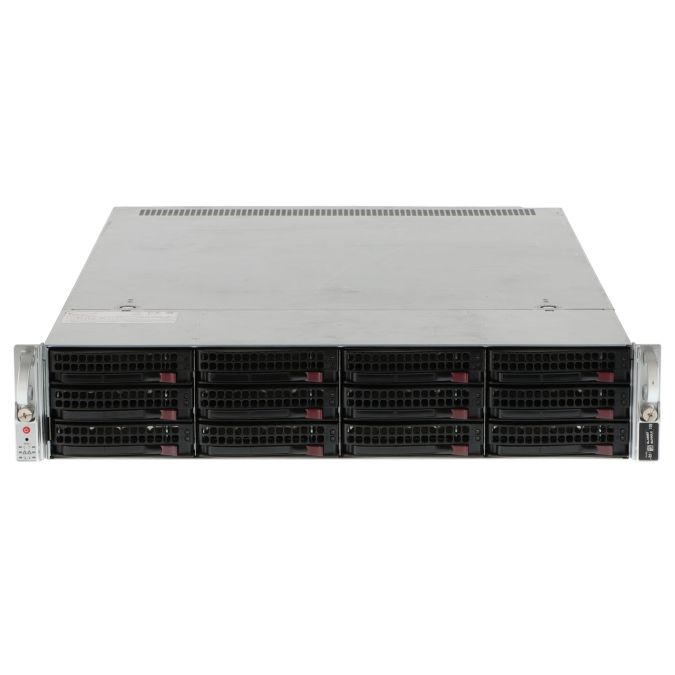

Supermicro CSE-829U X11 Server 2x Gold 5115 10C 2,4GHz 1TB 8x SAS 4x NVME X710
| MPN | 6029U-E1CRT |
|---|---|
| Applicability | Server |
| Manufacturer | Supermicro |
| SKU | 30008796 |
| Product Type | Server |
Supermicro CSE-829U X11 Server 2x Gold 5115 10C 2,4GHz 1TB 8x SAS 4x NVME X710 is an enterprise hardware item from Supermicro, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Supermicro
- SKU: 30008796
- Stock status: InStock
- Corresponding P/Ns: 6029U-E1CRT CSE-829U CSE-829U2E1C4-R1K02-T SuperServer 6029U-E1CRT SYS-6029U-E1CR4T X11DPU
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Processor | Intel Xeon |
| Processor type | Xeon Gold 5115 |
| Number of CPUs | 2 |
| Number of CPU sockets | 2 |
| Processor clock (MHz) | 2400 |
| Number of cores per CPU | 10 |
| Working memory (GB) | 1024 |
| Memory type | DDR4 RAM |
| Hard disc type | 8x SAS/SATA LFF - 4x SAS/NVMe LFF |
| Hot plug | Yes |
| Graphics card onboard | Yes |
| Number of power supply units | 2 |
| Max. number of power supply units | 2 |
| Power per power supply unit (watts) | 1000 |
| Type of construction | Rack |
| Hard drives - further HDDs or frames on request | |
| Total capacity (GB) | 0 |
| max. hard discs | 12 |
| PCI devices onboard | |
| Device_1 | 10 Gigabit Ethernet Controller Intel X710/X557-AT |
| Device_2 | LSI MegaRAID SAS 9361-8i 12G RAID controller + BBU |
| Device_4 | Intelligent Platform Management Interface v2.0 (IPMI 2.0) |
| Expansion slots | |
| PCIe x8 Low Profile, Modular RAID controller only | 1 |
| PCIe 3.0 x8 Low Profile | 1 |
| PCIe 3.0 x16 | 3 |
| Connections | |
| VGA | 1 |
| 10 Gigabit Ethernet, RJ-45 | 4 |
| Management | 1 |
| Serial Port | 1 |
| USB 3.0 | 3 |
Included in delivery: Item as described incl. 12x hard disk frames with screws incl. Power cable w/o Rack mounting rails
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
