| Main Specifications |

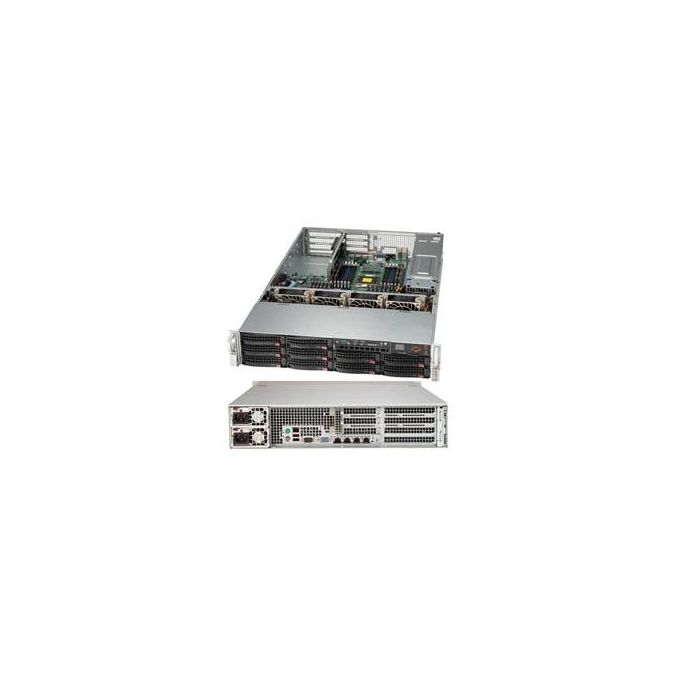

| Device Type | SuperChassis 829BTQ-R920WB |
| Form Factor | 2U chassis |
| Supported Motherboards | SMC Proprietary WIO , 13.68' x 16.5' motherboards |
| Dimensions (WxDxH) | Height 3.5' (89 mm) x Width 17.2' (437 mm) x Depth 27.75' (705 mm) |
| Weight | 55 lbs (24.95 kg) |
| Enclosure Color | Black |
| Processor Support |
| Processor Support | Dual Intel and AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 3 low-profile expansion slot(s) |
| 4 full-height & full-length expansion slot(s) |
| Drive Bays |
| Hot-swap | 10 x 3.5' hot-swap SAS/SATA |
| Peripheral Drives | Optional 1 x slim DVD-ROM drive bay |
| Optional 2 x USB 2.0 ports |
| 1 x COM port tray |
| Backplane |
| SAS/SATA HDD Backplane | 10-port 2U CSE-829 TQ (W/ AMI 9072 SGPIO support) backplane, support up to 10x 3.5-inch SAS/SATA HDD |
| HDD Backplane | 1x BPN-SAS-829BTQ |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | 4 Network Activity LEDs, HDD activity LED, Power Status LED, Power Fail LED, System Information LED |
| System Cooling |
| Fans | 4 x 80mm 9500 RPM fan(s) |
| Optional 3 x fans for 100% cooling redundancy |
| Environmental Parameters |
| Operating Temperature | Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Power Supply |
| Power Supply | 1U 920W Redundant Platinum Super Quiet power supply W/PMbus |
| Certification | 80 Plus Platinum Certified |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC class B, TUV/CB, UL/CUL |
| Parts List - (Items Included) |
| Air Shroud | 1x MCP-310-29002-0N |
| Cable(s) | 1x CBL-0071, 1x CBL-0157L, 1x CBL-0180L-01 |
| Fan(s) | 4x FAN-0118L4 |
| Drive Trays | 10x MCP-220-00075-0B |
| Power Supply Number | 2x PWS-920P-SQ |
| Mounting Rails | 1x MCP-290-00053-0N |
| Rear Window | 1x MCP-240-00104-0N |
| Miscellaneous |
| Included Accessories | 1x MCP-290-00036-0B, 1x MCP-320-82902-0N |
| Compatible Motherboards | X9DRW-3LN4F+, X9DRW-3TF+, X9DRW-iTPF, X9DRW-iTPF+, X9DRW-7TPF |
| Compatible Servers | 6027R-N3RFT+, 6027R-N3RF4+, 6027R-72RFTP+ |
