| Main Specifications |

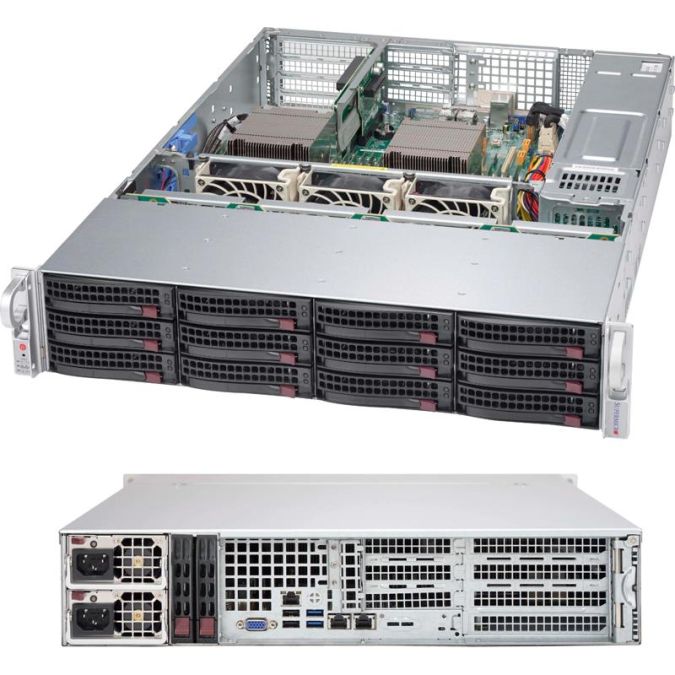

| Device Type | SuperChassis 826BE1C4-R1K23WB |
| Form Factor | 2U chassis |
| Supported Motherboards | SMC Proprietary WIO motherboards max. motherboard size - 12' x 13', 13' x 13.68', Support up to 12'x13' MB with rear 2.5' HDD option installed |
| Dimensions (WxDxH) | Height 3.5' (89 mm) x Width 17.2' (437 mm) x Depth 25.5' (647 mm) |
| Weight | Gross Weight: 55 lbs (24.95 kg) - Net Weight: 40 lbs (18.14 kg) |
| Enclosure Color | Black |
| Processor Support |
| Processor Support | Dual and Single Intel and AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | WIO Slots 4x Full-height, Half-length expansion slot(s), WIO Slots 3x Low-profile expansion slot(s) |
| Expansion Bays Total (Free) | Optional 2x 2.5' hot-swap drive bay |
| 12x 3.5' hot-swap drive bay, 8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5' HDD |
| Backplane |
| SAS/SATA HDD Backplane | 12-Port 2U Backplane with Expander support up to 8 x 3.5' SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | Power status LED, HDD activity LED, 2 Network Activity LEDs, Unit Identification (UID) LED, Fan Fail/System Over Heat LED |
| System Cooling |
| Fans/Air Shroud | 3x 8cm high-performance PWM fan(s) |
| Optional 5x 6cm 4pin high performance fan(s) |
| 1x MCP-310-29001-0N |
| System Monitoring |
| System Monitoring | Chassis intrusion switch |
| Environmental |
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Power Supply |
| Power Supply | 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm |
| Certification | 80PLUS Titanium Certified |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL |
| Parts List - (Items Included) |
| Bracket(s) | 1x MCP-320-82601-0N |
| Backplane | 1x BPN-SAS3-826EL1-N4 |
| Front Panel Control | 1x FPB-FP826-D, 1x TB826 |
| Drive Trays | 12x MCP-220-00075-0B, 1x MCP-290-82607-0N |
| Mounting Rails | 1x MCP-410-00007-0N, 1x MCP-290-00053-0N, 1x MCP-290-00060-0N |
| Rear Window | 1x MCP-240-82609-0N |
| Fan(s) | 3x FAN-0158L4 |
| Cable(s) | 1x CBL-0071L, 2x CBL-0160L, 1x CBL-0182L, 1x CBL-0217L |
| Power Distributor(s) | 1x PDB-PT826-S8824 |
| Power Supply Number | 2x PWS-1K23A-1R |
| Parts | 7x MCP-120-00062-0N, 1x MCP-230-82603-0N, 1x MCP-240-00103-0N, 1x MCP-290-00088-0N, 1x MCP-290-82605-0V, 1x MCP-290-82606-0N |
