Supermicro CSE-216BE2C-R609JBOD 2U Rackmount 600W/650W Power Supply
| Applicability | AI infrastructure support — power / rack / cooling |
|---|---|
| Manufacturer | Supermicro |
| SKU | CSE-216BE2C-R609JBOD |
| Product Type | Power Supply |

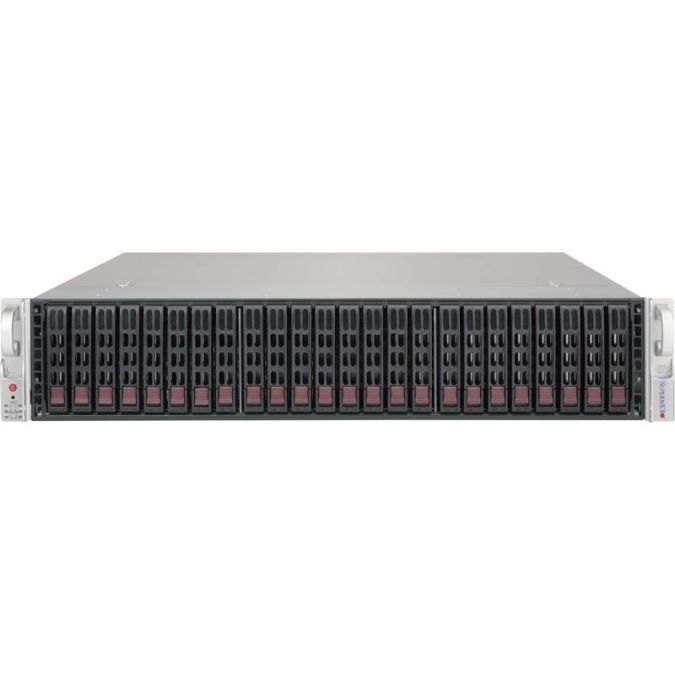

The SC216B JBOD storage enclosure is designed to scale your Supermicro server storage expansion capacity. In a 2U form factor, it offers twenty-four hot-swap 2.5' SAS/SATA hard drive bays, without compromising superior cooling capabilities. The CSE-216BE2C-R609JBOD model offers two expanders for high availability. Just install hard drives and use an external SAS cable and connect to a host bus adapter (HBA) on the head node server. The storage capacity can be expanded instantly and reduce the initial investment. The chassis is equipped with a redundant, efficient power supply for outstanding power savings, with specially designed optimized cooling. Quick-release, tool-less slide rails are available for quick installation.
Key Features
Cloud Backup, Data Replication, or High-Density Archive Storage Applications
2U Storage JBOD Chassis with capacity 24 x 2.5' hot-swappable HDDs bays
Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
1x IPMI port for Remote System Power on/off and system monitoring
Support NTP for time synchronization & RTC battery backup
600W (1+1) 94% efficient Platinum level power supplies
3 x 80mm high efficient hot-swappable fans for best system cooling
Ideal for Cloud backup, data Replication or High-density Archive Storage Applications
Qualified SAS HBA / controller: AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA, AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
