| Motherboard |
| Motherboard | Super H12DSG-O-CPU |
| Processor/Cache |
| CPU | Socket SP3 |
| Supports CPU TDP up to 280W ** |
| Dual AMD EPYC™ 7003/7002 Series Processors |
| Cores | Up to 128 Cores (64 per CPU) |
| Note | * Supports 2 CPUs only – single socket not supported ** Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization |
| GPU |
| Supported GPUs | Supports both active and passive cooled GPUs |
| Compatible GPU list |
| 8 Double-Width/Single-Width PCI-E 3.0/4.0 x16 Card (Full Height Full Length) |
| NVIDIANVIDIA A30 A100, V100, A40, T4, Quadro RTX, AMD Instinct |
| CPU-GPU Interconnect | PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root |
| GPU-GPU Interconnect | NVIDIANVIDIA A30® NVLink™ Bridge (Optional), AMD Infinity Fabric (optional) |
| System Memory |
| Memory Capacity | 32 DIMM slots * |
| Up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM |
| Memory Type | 3200MHz ECC DDR4 RDIMM/LRDIMM ** |
| Note | * Minimum 4 DIMMs per CPU required with EPYC 7003 Series processors |
| ** In 2DPC configurations memory speed is up to 2933MHz |
| On-Board Devices |
| Chipset | System on Chip (SoC) |
| SATA | SATA3 (6Gbps) |
| Network Controllers | Provided via riser card |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
| Input / Output |
| SATA/SAS | 24 SATA/SAS with a controller |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 2 RJ45 GbE LAN ports (rear) |
| USB | 2 USB 3.0 ports (rear) |
| Video | 1 VGA Connector |
| COM Port | 1 COM port (header) |
| System BIOS |
| BIOS Type | AMI 32Mb SPI Flash ROM |
| Management |
| Software | Watchdog |
| KVM with dedicated LAN |
| SuperDoctor® 5 |
| IPMI 2.0 |
| SSM , SPM , SUM |
| PC Health Monitoring |
| CPU | 4+1 Phase-switching voltage regulator |
| Monitors for CPU Cores, Chipset Voltages, Memory. |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 4U Rackmountable |
| Rackmount Kit (MCP-290-00057-0N) |
| Model | CSE-418G2TS-R4016BP |
| Dimensions |
| Height | 7.0' (178mm) |
| Width | 17.2' (437mm) |
| Depth | 29' (737mm) |
| Package | 26.57' (H) x 27' (W) x 41' (D) |
| Weight | Net Weight: 65.5 lbs (29.7 kg) |
| Gross Weight: 100 lbs (45.3 kg) |
| Available Colors | Black |
| Drive Bays / Storage |
| Hot-swap | Up to 24x 2.5' SAS/SATA drive bays |
| 2x 2.5' SATA supported natively * |
| RAID controller option available for 24 HDDs |
| 4x 2.5' NVMe Gen4 supported natively |
| Note | * 2x drives in RAID 1 only via onboard Marvell 9230 |
| Expansion Slots |
| PCI-Express | 9 PCI-E 4.0 x16 (FHFL) slots |
| or 10 PCI-E 4.0 x16 (FHFL) slots without NVMe devices |
| System Cooling |
| Fans | 8x 11.5K RPM heavy duty fans |
| Power Supply |
| Power Supply | 2000W Redundant Power Supplies with PMBus |
| Total Output Power | 1800W: 200 – 220Vac |
| 1980W: 220 – 230Vac |
| 2000W: 230 – 240Vac |
| 1000W: 100 – 127Vac |
| 2000W: 220 – 240Vac (UL only) |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| Input | 220-230Vac / 10-9.8A / 50-60Hz |
| 230-240Vac / 10-9.8A / 50-60Hz |
| 100-127Vac / 12-9A / 50-60Hz |
| 200-220Vac / 10-9.8A / 50-60Hz |
| 220-240Vac / 11-10A / 50-60Hz (UL only) |
| +12V | Max: 83A / Min: 0A (100-127Vac) |
| Max: 150A / Min: 0A (200-220Vac) |
| Max: 165A / Min: 0A (220-230Vac) |
| Max: 166A / Min: 0A (230-240Vac) |
| Max: 166A / Min: 0A (220-240Vac) (UL only) |
| 12Vsb | Max: 3.5A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Product SKUs |

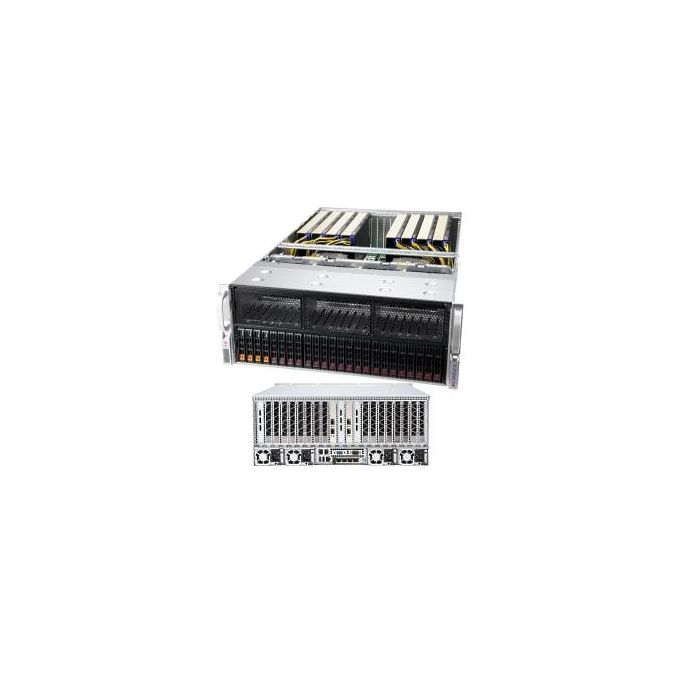

| Product SKUs | A+ Server 4124GS-TNR+ (Black) |
