| Motherboard |
| Motherboard | Super H12SSL-i |
| Processor/Chipset |
| CPU | Socket SP3 |
| Supports CPU TDP up to 280W |
| Single AMD EPYC™ 7002/7003 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) |
| Cores | Up to 64 Cores |
| System Memory |
| Memory Capacity | 8 DIMM slots |
| Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM |
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs |
| On-Board Devices |
| Chipset | System on Chip |
| SATA | SATA3 (6Gbps) |
| Network Controllers | Broadcom BCM5720 Gigabit Ethernet Controller |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | ASPEED AST2500 BMC |
| Input / Output |
| SATA | 8 SATA3 (6 Gbps) ports |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| Dual Gigabit Ethernet ports |
| USB | 6 USB 3.0 ports (4 rear, 2 via header) |
| COM | 1 COM Port (rear) |
| Video | 1 VGA port |
| DOM | 1 Super DOM (Disk on Module) port |
| System BIOS |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| Management |
| Software | Watch Dog |
| NMI |
| SUM |
| Super Doctor 5 |
| IPMI 2.0 , KVM with dedicated LAN |
| Power Configurations | ACPI / APM Power Management |
| PC Health Monitoring |
| CPU | 4+1 Phase-switching voltage regulator |
| Monitors for CPU Cores, Chipset Voltages, Memory. |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | Mid-Tower |
| Model | CSE-732i-903B |
| Dimensions and Weight |
| Width | 7.6' (193mm) |
| Height | 16.7' (424mm) |
| Depth | 20.68' (525mm) |
| Packaging (W x H x L) | 11.97' (304mm) x 21.38' (543mm) x 25.27' (642mm) |
| Net Weight | 27 lbs (12.25 kg) |
| Gross Weight | 30 lbs (13.61 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | System Information LED |
| Network activity LEDs |
| Power status LED |
| HDD activity LED |
| Ports | 2 USB 3.0 Ports |
| Expansion Slots |
| PCI-Express | 5 PCI-E 4.0 x16 (FH) slots |
| 2 PCI-E 4.0 x8 (FH) slots |
| M.2 | Form factor: 2280, 22110 |
| Key: M-key |
| Interface: 2 PCI-E 4.0 x4 |
| Drive Bays |
| Internal | 4 internal 3.5' SATA3 drive bays |
| 4 internal 2.5' drive bays |
| System Cooling |
| Fans | 2x 12cm rear exhaust fans |
| Optional additional 12cm rear exhaust fan |
| Note | Active CPU Heat Sink (SNK-P0064AP4) from Optional Parts List is required |
| Power Supply |
| Power Supply | 900W AC multi output power supply |
| AC Voltage | 100-240 V, 50-60 Hz, 10-6 Amp |
| +5V Standby | 3 Amp |
| +12V1 | 25 Amp |
| +12V2 | 25 Amp |
| +12V3 | 25 Amp |
| +12V4 | 25 Amp |
| +5V | 25 Amp |
| +3.3V | 25 Amp |
| -12V | 0.5 Amp |
| Certification | Gold Level |
| Note: | • Max. continuous combined load on +3.3V and +5V output shall not exceed 155W. • Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W. |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Product SKUs |

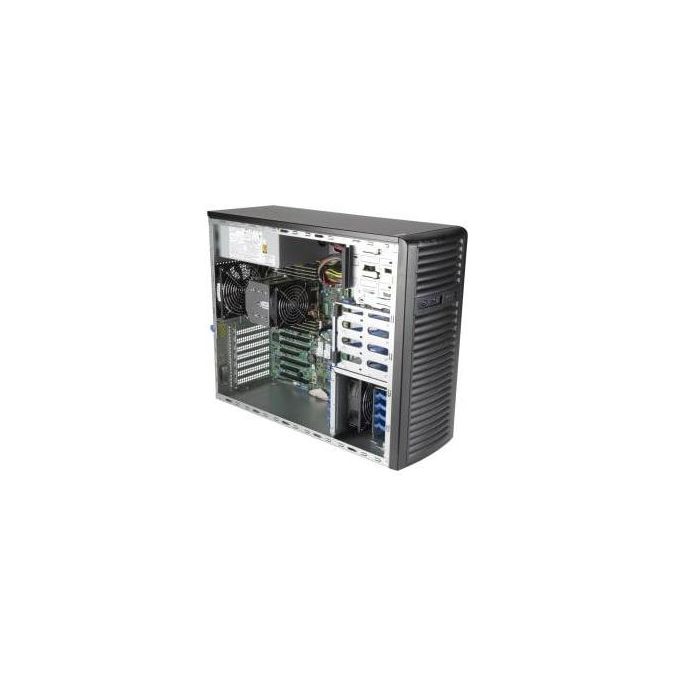

| Product SKUs | A+ Server 3014TS-i (Black) |
