| Product SKUs |

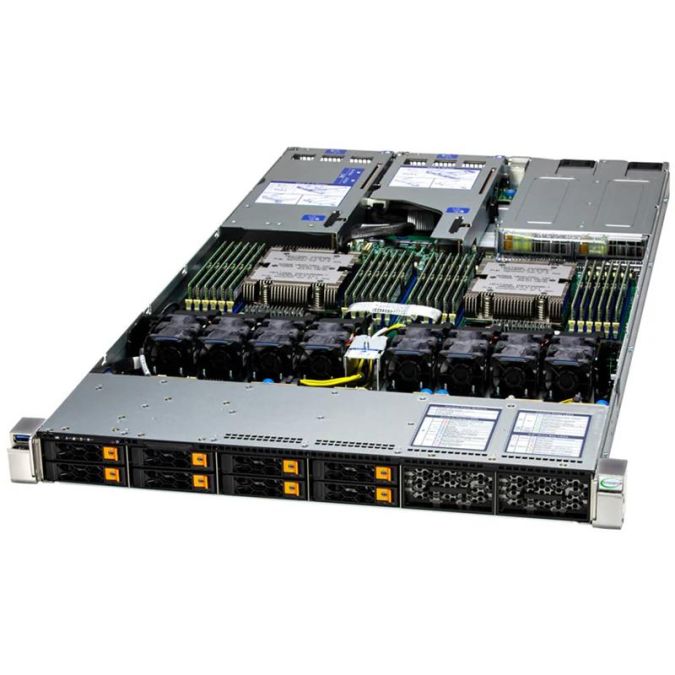

| Product SKUs | AS -1126HS-TN |
| Motherboard |
| Motherboard | Super H14DSH |
| Processor |
| CPU | Dual processor(s) |
| AMD EPYC™ 9005/9004 Series Processors |
| Core Count | Up to 384C/768T |
| Note | Supports up to 500W TDP CPUs * |
| *Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details. |
| System Memory |
| Memory | View Memory Options |
| Slot Count: 24 DIMM slots |
| Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) |
| Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| View AOC Options |
| View AIOM Options |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) |
| 1 USB 3.0 port(front) |
| Video | 1 VGA port |
| TPM | 1 TPM Onboard/port 80 |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| BIOS Features | USB Keyboard support |
| Plug and Play (PnP) |
| UEFI 2.8 |
| ACPI 6.5 |
| SMBIOS 3.7 or later |
| Management |
| Software | KVM with dedicated LAN |
| IPMI 2.0 |
| Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| IPMIView |
| Power configurations | Power-on mode control for AC power loss recovery |
| Power button override mechanism, |
| ACPI/APM Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-HS101-R000NFP |
| Dimensions and Weight |
| Height | 1.7' (43 mm) |
| Width | 17.2' (437 mm) |
| Depth | 30.66' (778.7 mm) |
| Package | 8.82' (H) x 26.46' (W) x 43.31' (D) |
| Weight | Gross Weight: 41.4 lbs (18.8 kg) |
| Net Weight: 19.2 lbs (8.7 kg) |
| Available Color | Silver |
| Front Panel |
| LED | LAN1 activity |
| Power status |
| HDD activity |
| System information |
| Buttons | UID button |
| Power On/Off |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| CXL Support |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| View NVMe Options |
| Default: Total 8 bays 8 front hot-swap 2.5' NVMe*/SATA* drive bays |
| 8 front hot-swap 2.5' NVMe*/SATA* drive bays |
| (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) |
| Option A: Total 12 bays 12 front hot-swap 2.5' NVMe*/SATA* drive bays |
| 12 front hot-swap 2.5' NVMe*/SATA* drive bays |
| M.2 | View M.2 Options |
| 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) |
| System Cooling |
| Fans | 8 counter-rotating 40x40x56mm Fan(s) |
| Air Shroud | 2 Air Shrouds |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Environmental / Recycling |
| Recycle | Return Server-End of Life Product |
