| Main Specifications |

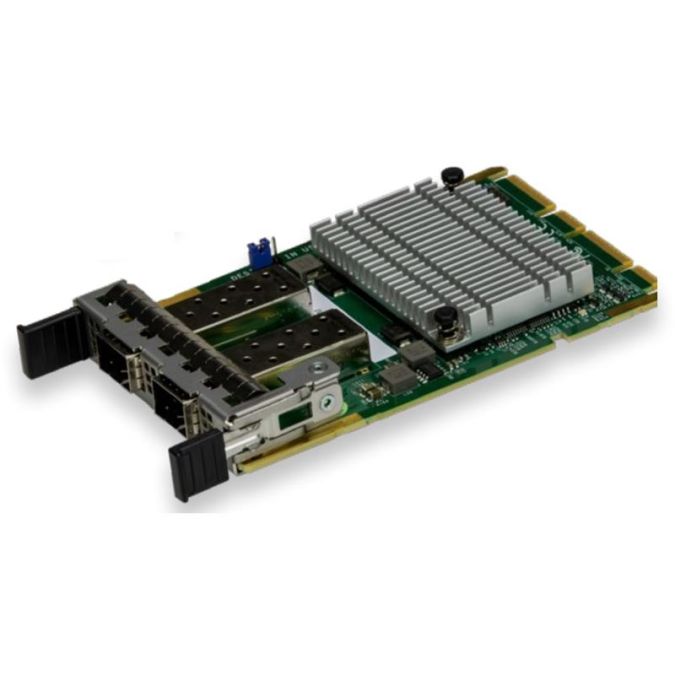

| Device Type | 25GbE Ethernet Controller |
| Form Factor | Advanced I/O Module (AIOM) |
| Dimensions (WxDxH) | Card PCB dimensions: 76mm x 115mm (W x D) |
| Connectivity |
| Connectors | Dual SFP28 connectors |
| Networking |
| Controller Type | Broadcom BCM57414 25GbE controller |
| Networking Features | Jumbo frames (up to 9.6 KB), IEEE 802.3x flow control, IEEE 1588 and Time Sync, IEEE 802.3ad Link Aggregation, Virtual LANs- 802.1q VLAN tagging, Configurable Flow Acceleration, PXE, UEFI, and iSCSI remote boot |
| Stateless Offload Features | TCP, UDP and IP checksum offloads, IPv4 and IPv6 offloads, Large Send Offload, Receive Segment Coalescing, TCP Segmentation Offload, Large Receive Offload, Receive Side Scaling (RSS), Transmit Side Scaling (TSS), Accelerate Received Flow Steering (RFS) |
| NIC Partitioning | 16 Physical Functions, QoS per partition, Partitioning control via sideband communication, Up to 64 MAC/VLAN filter per partition, Per partition statistics support, Stateless offloads configuration per partition, VEB/VEPA support |
| Virtualization Features | NetQueue, VMQueue, and Multiqueue, SR-IOV with up to 128 Virtual Functions (VFs), VXLAN, NVGRE, and Geneve, Edge Virtual Bridging (EVB) |
| RDMA over Converged Ethernet | RoCEv1 and RoCEv2, Data Center Bridging with RoCE |
| Flow Processing | Exact/Wildcard Match Flow Lookup, VLAN insertion/deletion, NAT/NAPT/Mirroring |
| Data Center Bridging | Priority-based flow control (PFC, IEEE 802.1Qbb), Enhanced transmission selection (ETS, IEEE 802.1Qau), Quantized congestion Notification (QCN, IEEE 802.1Qau), Data Center Bridging Capability eXchange (DCBX, IEEE 802.1Qaz), 8 traffic classes per port, fully DCB compliant per 802.1Qbb |
| Power |
| Power Savings | ACPI compliant power management, Ultra-low-power mode, Pass-through Energy Efficient Ethernet (IEEE 802.3az-2010) |
| Power Consumption | Maximum: 7.7W |
| Environmental Parameters |
| Operating Temperature | Storage temperature: -40°C to 70°C (-40°F to 158°F) |
| Storage humidity: 90% non-condensing relative humidity at 35°C |
| Miscellaneous |
| Compliant Standards | RoHS Compliant 6/6 |
| Bracket | BKT-0209L - 0.5U height Narrow bracket (for GrandTwin front IO system only) |
