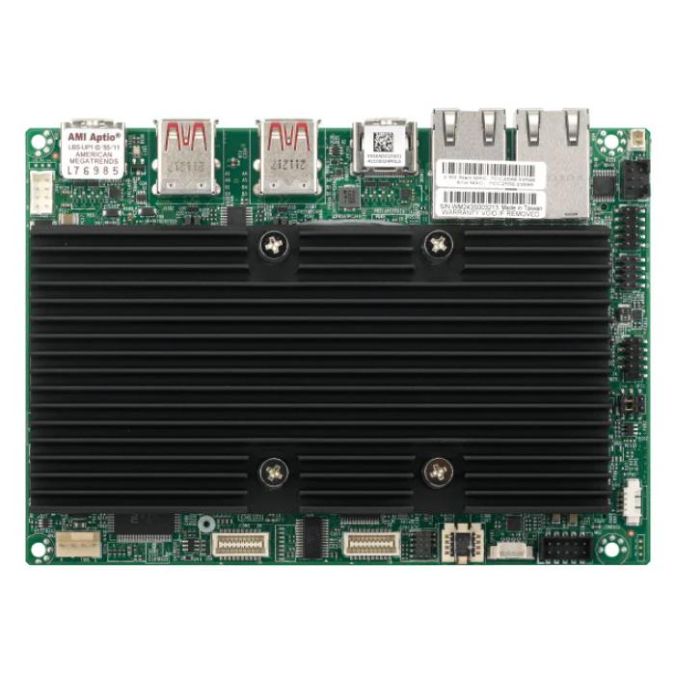

Supermicro A4SAN-E Motherboard UP IoT 3.5' SBC Embedded Intel Atom x7433RE Processor 4-Core
| Applicability | Enterprise server / data center platform |
|---|---|
| Manufacturer | Supermicro |
| SKU | A4SAN-E |
| Product Type | Embedded Server Motherboard |
Key Features
Intel Atom Processor x7433RE (9W, 4C)
DDR5 4800 MHz, SODIMM x 1, Up to 16GB, In-Band ECC supported
M.2 M-Key 2242/2280, M.2 E-key 2230, M.2 B-key 2240/3052/2280
Dual 2.5GbE, M.2 B-key w/ nano SIM & 5G module supported
9-36V wide range power with RVP and TVS
4 USB3.2, 2 USB2.0, 4COM ports, audio with AMP, SMBus/I2C, 8bit GPIO
2 HDMI, 1 48bit LVDS, Intel HD Graphics 3 independent displays
Wide temperature support from -40°C to 75°C (by optional heatsink)
