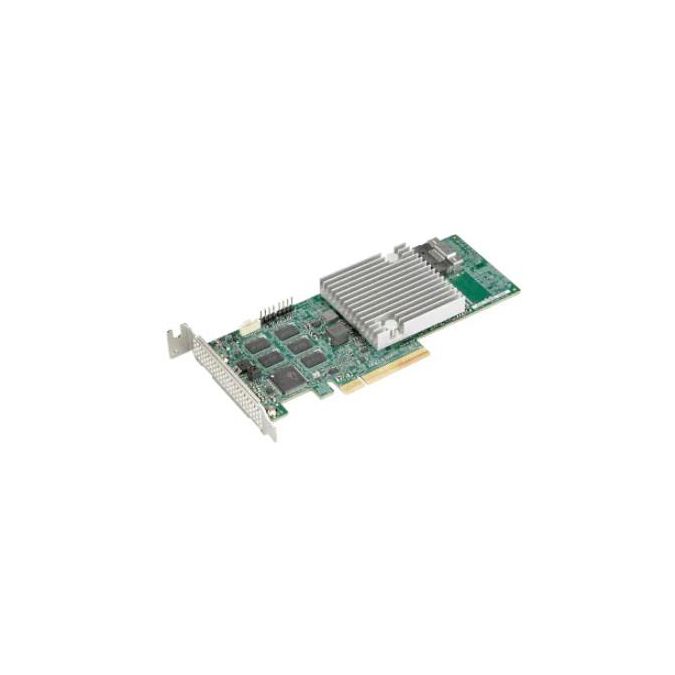

Supermicro 8-Port SAS3 12Gb/s & SATA3 6Gb/s Gen4 PCIe x8 Hardware RAID 0, 1, 5, 6, 10, 50 & 60, Broadcom 3908L, AOC-S3908L-H8IR-32DD
| Applicability | Enterprise storage infrastructure |
|---|---|
| Manufacturer | Supermicro |
| SKU | AOC-S3908L-H8IR-32DD |
| Product Type | Storage Controller / RAID / HBA |
Supermicro 12Gb/s Multi-Port SAS PCIe Gen 4.0 Internal RAID Adapter.
The Supermicro MegaRAID Low Profile AOC-S3908L-H8IR-32DD features 8 internal SAS connectors.
Key Features
Low profile x8 PCIe Gen 4.0 root complex interface
Supports RAID 0, 1, 5, 6, 10, 50, 60
8GB DDR4 onboard cache memory – 2666MHz
Supports 3.0, 6.0 and 12.0 Gb/s SAS data transfer rates
Support for MCTP over PCIe
Cachevault to protect onboard cache memory
Supercap - BTR-CVPM05 (Optional)
TFM – Included on-board
Supports advanced software Encryption - included
Supports in LSA Storage Authority Software WebGUI
Secure boot
UEFI Configuration utility
OS Support: Windows/Linux
Thermal operating range: System dependent (55°C or higher w/ enough airflow)
