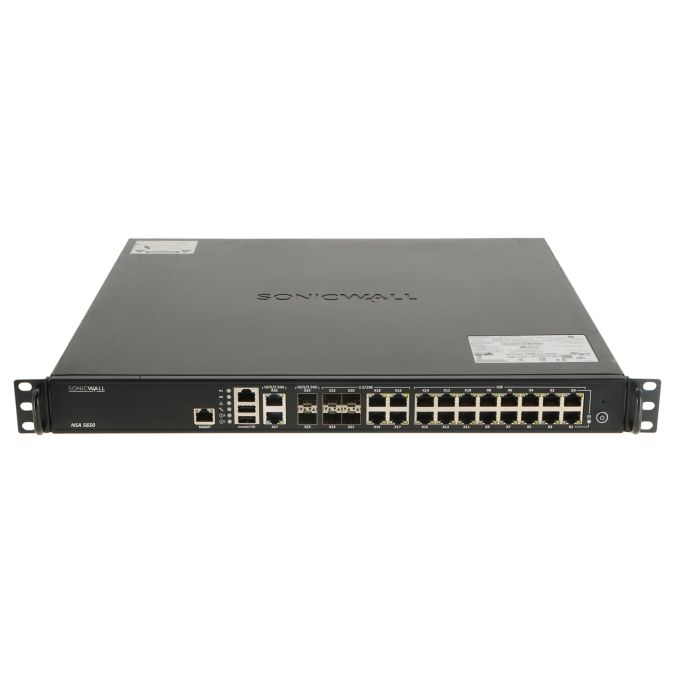

SonicWall NSa 5650 6.25 Gbps 4x 10GbE 8x 2.5GbE 16x 1GbE 2x PSU - 01-SSC-1939
| MPN | 01-SSC-1939 |
|---|---|
| Applicability | Network |
| Manufacturer | SonicWall |
| SKU | 10010309 |
| Product Type | Firewall |
SonicWall NSa 5650 6.25 Gbps 4x 10GbE 8x 2.5GbE 16x 1GbE 2x PSU - 01-SSC-1939 is an enterprise hardware item from SonicWall, suitable for network infrastructure and connectivity projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: SonicWall
- SKU: 10010309
- Category: Network / Firewall
- Stock status: InStock
- Product family: SonicWall SonicWave 432i
- Corresponding P/Ns: 01-SSC-1939 295-000116-50 5216A NSa 5650 NSa5650
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Next Gen Firewall |
| Type of construction | Rack-mountable, 1U |
| RAM | 8 GB |
| Flash memory | 1 GB |
| Power supply units | 2 |
| Data transfer rate (Ethernet) | 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps |
| Hard disc | 1x 64GB SSD |
| Network functions | |
| NAT (Network Address Translation) | Yes |
| VLAN support | Yes |
| max. VLAN 802.1q | 500 |
| Site-to-site VPN tunnels | 6000 |
| VoIP | Full H323-v1-5, SIP |
| SSL VPN User | 2 |
| IPsec VPN Tunnels | 2000 |
| Performance features | |
| CLI | Yes |
| Firewall throughput | 6.25 Gbps |
| HTTP | Yes |
| HTTPS | Yes |
| IPS Throughput | 3.4 Gbps |
| Max. DPI sessions | 1.500.000 |
| Max. sessions | 4.000.000 |
| OSPF | Yes |
| QoS | Yes |
| RADIUS | Yes |
| RIPv1 | Yes |
| RIPv2 | Yes |
| SNMPv2c | Yes |
| SNMPv3 | Yes |
| SSH | Yes |
| SSL | Yes |
| SSL throughput | 800 Mbps |
| VPN Throughput | 3.5 Gbps |
| Web GUI | Yes |
| Connections per second | 40.000 |
| IPsec (IP Security) | Yes |
| Connections | |
| Network - Ethernet - RJ-45 | 22 |
| Network - Ethernet - SFP+ | 6 |
| USB 2.0 | 2 |
| Management - Ethernet - RJ-45 | 1 |
| Management - RS-232 - RJ-45 | 1 |
| Modules | |
| Module slot (free) | 1 |
| Installed licences | |
| Unlimited Nodes/Users | Yes |
| Note | |
| Optical defect | May show scratches and signs of use. |
Included in delivery: Item as described incl. Mounting bracket incl. Power cable w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
