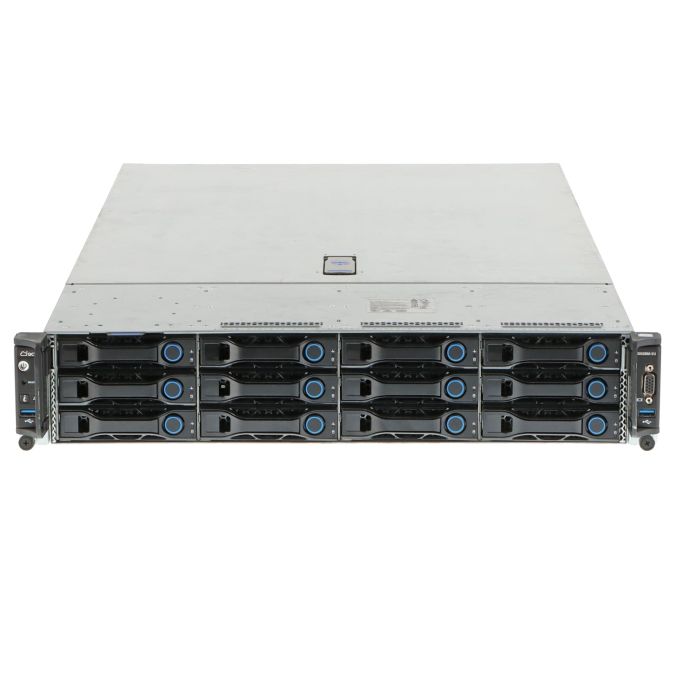

Quanta D52BM-2U Server 2x Xeon Gold 6136 12C 3GHz 512GB 16x LFF+2xSFF SAS3216
| MPN | D52BM |
|---|---|
| Applicability | Server |
| Manufacturer | Quanta |
| SKU | 30009157 |
| Product Type | Server |
Quanta D52BM-2U Server 2x Xeon Gold 6136 12C 3GHz 512GB 16x LFF+2xSFF SAS3216 is an enterprise hardware item from Quanta, suitable for server and data-center environments. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Quanta
- SKU: 30009157
- Category: Server / Other manufacturers
- Stock status: InStock
- Corresponding P/Ns: D52BM D52BM-2U QuantaGrid QuantaGrid D52BM-2U
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Processor type | Xeon Gold 6136 |
| Number of CPUs | 2 |
| Number of CPU sockets | 2 |
| Processor clock (MHz) | 3000 |
| Number of cores per CPU | 12 |
| Working memory (GB) | 512 |
| Memory type | DDR4 RAM |
| Hard disc type | 16x SAS/SATA LFF + 2x SATA SFF |
| Number of power supply units | 2 |
| Max. number of power supply units | 2 |
| Power per power supply unit (watts) | 800 |
| Number of fans | 6 |
| Type of construction | Rack |
| Hard drives - further HDDs or frames on request | |
| Total capacity (GB) | 0 |
| max. hard discs | 18 |
| PCI devices onboard | |
| Device_2 | LSI SAS3216 SAS/SATA HBA-Controller(Non Raid) |
| Device_3 | SATA C621/624 Raid Controller ( 0, 1, 10 ) |
| Expansion slots | |
| OCP 2.0 Mezzanine PCIe x16 Connector | 1 |
| PCIe 3.0 x8 Low Profile | 1 |
| PCIe 3.0 x16 Low Profile | 2 |
| Connections | |
| VGA | 2 |
| Management | 1 |
| Serial Port | 1 |
| MicroSD card slot | 1 |
| USB | 2 |
| USB 3.0 | 2 |
Included in delivery: Item as described incl. Hard disk frame incl. Power cable w/o Rack mounting rails
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
