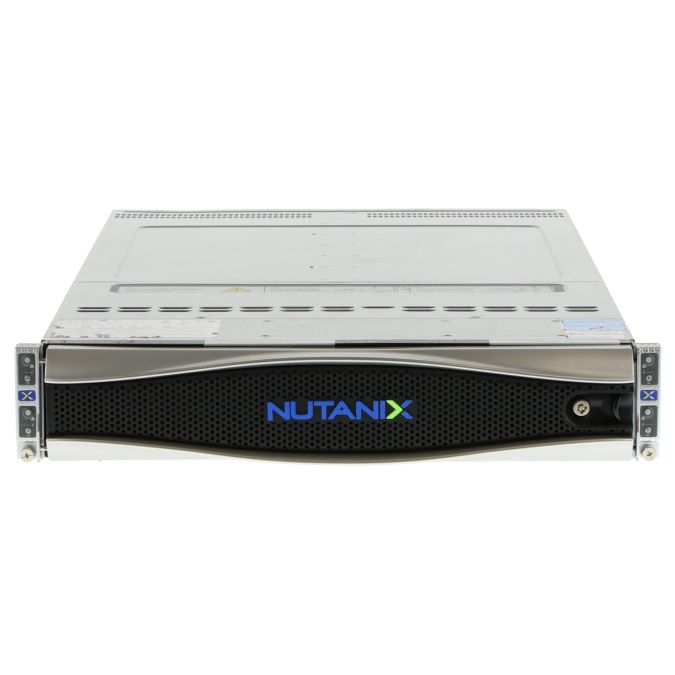

Nutanix Server NX-3460-G6 4x NX-3060-G6 2x Xeon Gold 6130 16-Core 2
| MPN | AOC-SMG3-2H8M2-B |
|---|---|
| Applicability | Server |
| Manufacturer | Nutanix |
| SKU | 30006792 |
| Product Type | Server |
Nutanix Server NX-3460-G6 4x NX-3060-G6 2x Xeon Gold 6130 16-Core 2 is an enterprise hardware item from Nutanix, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Nutanix
- SKU: 30006792
- Stock status: InStock
- Corresponding P/Ns: AOC-SMG3-2H8M2-B BPN-6S3008N4-1UB-NI22 CSE-217B NX-3460-G6 NXS2U4NS24G600 PWS-2K22A-1R RSC-P-6 RSC-R1UTP-E16R X11-DPT-B-G6-NI22
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Technical specifications Blade Enclosure | |
| Enclosure model | NXS2U4NS24G600 |
| Number of slide-in units | 4 |
| Number of power supply units | 2 |
| Power per power supply unit (watts) | 2200 |
| Number of fans | 4 |
| Hard disc type | SAS/SATA SFF |
| Hard disc blade enclosure | |
| max. hard discs | 24 |
| Total capacity (GB) | 0 |
| Installed servers | |
| Quantity | 4 |
| Model | NX-3060-G6 |
| Technical specifications per server | |
| Processor | Intel Xeon |
| Processor type | Xeon Gold 6130 |
| Number of CPUs | 2 |
| Number of CPU sockets | 2 |
| Processor clock (MHz) | 2100 |
| Number of cores per CPU | 16 |
| Working memory (GB) | 64 |
| Memory type | DDR4 RAM |
| Hard disc type | SAS/SATA SFF |
| Graphics card onboard | Yes |
| Data transfer rate (Ethernet) | 1 Gbps |
| PCI devices onboard | |
| Device_1 | Intel I350 Gigabit Ethernet Controller |
| Device_2 | LSI SAS3008 SAS/SATA RAID controller |
| Device_3 | Baseboard Management Controllers (BMC) |
| Expansion slots per server | |
| PCIe 3.0 x16 Low Profile | 2 |
| Blade server connections | |
| Network - Ethernet - RJ45 | 2 |
| USB 3.0 - Type A | 2 |
| VGA | 1 |
| Management - Ethernet - RJ45 | 1 |
| Power supply | |
| IEC 60320 C14 | 2 |
| Note | |
| CPU support | 1st Generation Scalable Processor |
Included in delivery: Item as described incl. 24x Festplattenrahmen (mit Schrauben) incl. Front panel incl. Power cable w/o Key w/o Rack mounting rails
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
