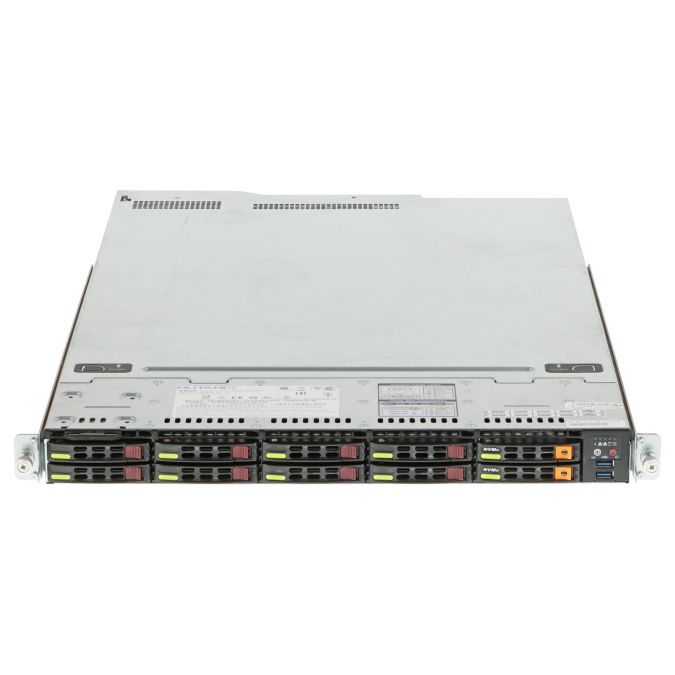

Nutanix NX-3170-G6 Server 2x Xeon Gold 6126 12C 2,6GHz 512GB 8x SAS 2x NVME
| MPN | CSE-119U |
|---|---|
| Applicability | Server |
| Manufacturer | Nutanix |
| SKU | 30006953 |
| Product Type | Server |
Nutanix NX-3170-G6 Server 2x Xeon Gold 6126 12C 2,6GHz 512GB 8x SAS 2x NVME is an enterprise hardware item from Nutanix, suitable for server and data-center environments. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Nutanix
- SKU: 30006953
- Category: Server / Supermicro / Nutanix G6
- Stock status: InStock
- Corresponding P/Ns: CSE-119U Nutanix UDT-1NL3-G6 NX-3170-G6 NX-UDT-1NL3-G6 NX3170-G6 NXS1U1Ns10G610 X11DPU-G6-NI22
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Processor | Intel Xeon |
| Processor type | Xeon Gold 6126 |
| Number of CPUs | 2 |
| Number of CPU sockets | 2 |
| Processor clock (MHz) | 2600 |
| Number of cores per CPU | 12 |
| Working memory (GB) | 512 |
| Memory type | DDR4 RAM |
| Number of DIMM slots | 24 |
| Hard disc type | 8x SAS/SATA SFF + 2xNVMe SFF |
| Graphics card onboard | Yes |
| Number of power supply units | 2 |
| Max. number of power supply units | 2 |
| Power per power supply unit (watts) | 1200 |
| Type of construction | Rack |
| Hard drives - further HDDs or frames on request | |
| Total capacity (GB) | 0 |
| max. hard discs | 10 |
| PCI devices onboard | |
| Device_1 | 10 Gigabit Ethernet Controller X540-AT2 |
| Device_2 | ARECA ARC-1260 16-Port SATA RAID Controller |
| Device_4 | Intelligent Platform Management Interface v2.0 (IPMI 2.0) |
| Expansion slots | |
| M.2 | 2 |
| PCIe 3.0 x8 Low Profile | 1 |
| PCIe 3.0 x16 | 2 |
| Connections | |
| VGA | 1 |
| 10 Gigabit Ethernet, RJ-45 | 2 |
| Management | 1 |
| Serial Port | 1 |
| USB 3.0 | 3 |
Included in delivery: Item as described incl. Hard disk frame (with screws) incl. Power cable w/o Bezel without key w/o Rack mounting rails
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
