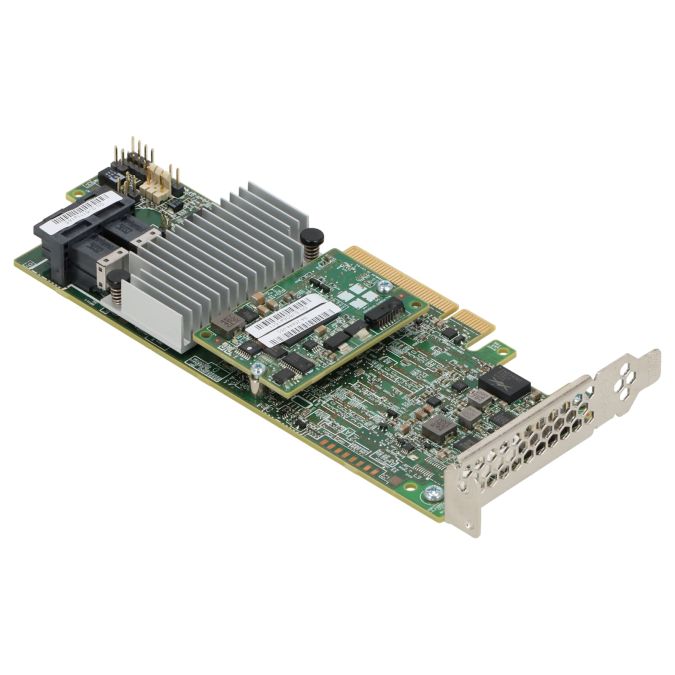

LSI RAID Controller MR SAS 9361-8i 8-CH SAS 12G PCI-E x8 LP - 03-25420-14B
In stock
SKU
50016479
€100.19
| MPN | 03-25420-14B |
|---|---|
| Applicability | Server |
| Manufacturer | LSI |
| SKU | 50016479 |
| Product Type | RAID Controller |
LSI RAID Controller MR SAS 9361-8i 8-CH SAS 12G PCI-E x8 LP - 03-25420-14B is an enterprise hardware item from LSI, suitable for repair, upgrade and spare-part replacement projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: LSI
- SKU: 50016479
- Category: Parts / Controller / Raid Controller
- Stock status: InStock
- Corresponding P/Ns: 03-25420-14B 04-25444-05C MR SAS 9361-8i
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | RAID controller |
| Controller interface type | SAS 12G/SATA 6G |
| Number of channels | 8 |
| Data transfer rate in MByte/s | 1200 |
| Low Profile | Yes |
| Max. number of peripheral devices | 8 |
| PCI variant | PCI-E 3.0 x8 |
| Buffer size (MB) | 1024 |
| RAID | |
| RAID functionality | Yes |
| RAID level 0 | Yes |
| RAID Level 1 | Yes |
| RAID Level 5 | Yes |
| RAID level 6 | Yes |
| RAID level 10 | Yes |
| RAID level 50 | Yes |
| RAID level 60 | Yes |
| Connections | |
| HD Mini-SAS (SFF-8643) 4x int. 36-pin | 2 |
Included in delivery: Item as described w/o Accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
| MPN | 03-25420-14B |
|---|---|
| Applicability | Server |
| Manufacturer | LSI |
| SKU | 50016479 |
| Product Type | RAID Controller |
