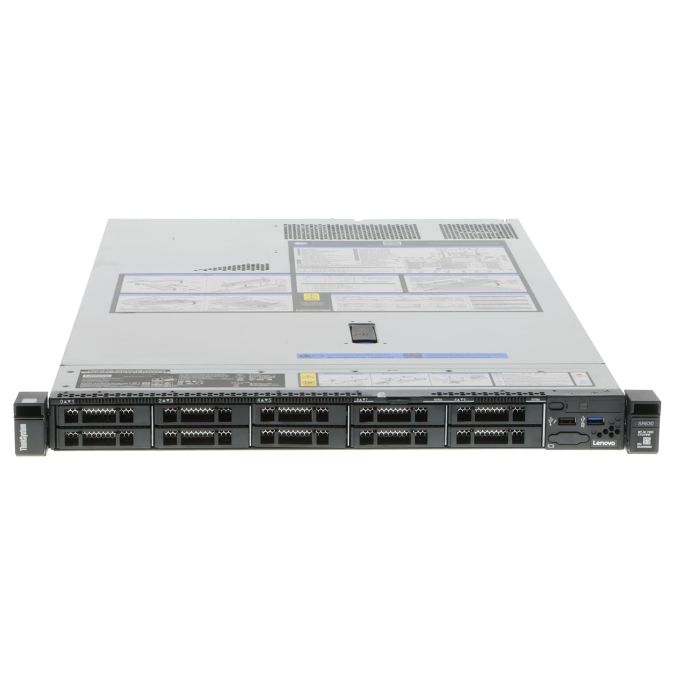

Lenovo ThinkSystem SR630 Server 2x Xeon Gold 6242 16-Core 2.8GHz 1TB DDR4 RAM 530-8i 10x SFF (6x SAS/SATA + 4x NVMe)
| MPN | 7X02CTO1WW |
|---|---|
| Applicability | Server |
| Manufacturer | Lenovo |
| SKU | 30010682 |
| Product Type | Server |
Lenovo ThinkSystem SR630 Server 2x Xeon Gold 6242 16-Core 2.8GHz 1TB DDR4 RAM 530-8i 10x SFF (6x SAS/SATA + 4x NVMe) is an enterprise hardware item from Lenovo, suitable for server and data-center environments. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Lenovo
- SKU: 30010682
- Category: Server / IBM/Lenovo / ThinkSystem
- Stock status: InStock
- Corresponding P/Ns: 7X02CTO1WW Lenovo ThinkSystem SR630 7X02
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Processor type | Xeon Gold 6242 |
| Number of CPUs | 2 |
| Number of CPU sockets | 2 |
| Processor clock (MHz) | 2800 |
| Number of cores per CPU | 16 |
| Working memory (GB) | 1024 |
| Memory type | DDR4 RAM |
| Hard disc type | 6x SAS/SATA SFF + 4x NVMe/SAS/SATA SFF |
| Graphics card onboard | Yes |
| Number of power supply units | 2 |
| Max. number of power supply units | 2 |
| Power per power supply unit (watts) | 750 |
| Type of construction | Rack |
| Hard drives - further HDDs or frames on request | |
| Total capacity (GB) | 0 |
| max. hard discs | 10 |
| PCI devices onboard | |
| Device_1 | Gigabit Ethernet Controller Intel X722 |
| Device_2 | RAID 530-8i 12Gb SAS/SATA Raid Controller |
| Device_3 | Intel VROC NVMe RAID Controller (RAID 0, 1, 5, 10) |
| Device_4 | XClarity Management Controller Enterprise (BMC) |
| Device_6 | TPM 1.2 / TPM 2.0 |
| Expansion slots | |
| M.2 Backplane Connector | 1 |
| PCIe 3.0 x8 Low Profile | 1 |
| PCIe 3.0 x16 Low Profile | 2 |
| Connections | |
| VGA | 1 |
| Gigabit Ethernet, RJ-45 | 2 |
| Management | 1 |
| XClarity Controller (USB) | 1 |
| USB 3.0 | 3 |
Included in delivery: Item as described incl. Power cable w/o Hard disk frame w/o Rack mounting rails
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
