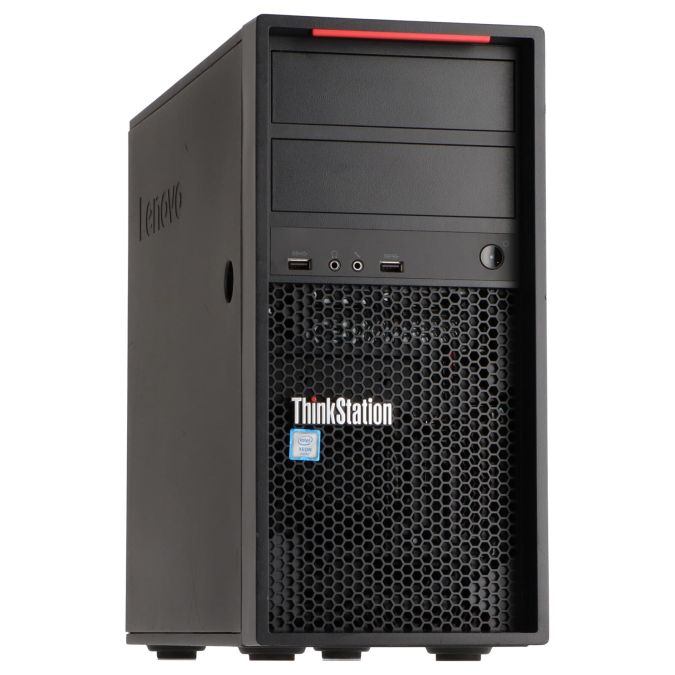

Lenovo ThinkStation P520c Workstation CTO LGA 2066 2x SATA 2x NVMe 625W Windows 11 Pro
| MPN | P520C |
|---|---|
| Applicability | Workstation |
| Manufacturer | Lenovo |
| SKU | 10010431 |
| Product Type | Workstation |
LenovoLenovo ThinkStation P520c Workstation CTO LGA 2066 2x SATA 2x NVMe 625W Windows 11 Pro is an enterprise hardware item from LenovoLenovo, suitable for professional workstation and CAD/compute environments. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Lenovo
- SKU: 10010431
- Category: WorkstationsWorkstations / Lenovo WorkstationsWorkstations / ThinkStation P520c
- Stock status: InStock
- Corresponding P/Ns: LenovoThinkStation P520c P520C
Use the product name, SKU and listed specifications to compare the item with your existing serverServer, storageStorage, workstation or networkNetwork configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| CPU Socket | FCLGA2066 |
| Number of CPU sockets | 1 |
| Processor | Intel Xeon |
| Number of DIMM slots | 4 |
| Memory type | DDR4 RAM |
| Graphics card | without graphics card |
| Sound | Yes |
| Number of power supply units | 1 |
| Power per power supply unit (watts) | 625 |
| TPM (Trusted Platform Module) | Yes |
| Data carrier | |
| Hard disc type | 2x SATA 3.5' + 2x M.2 2280 NVMe |
| max. hard discs | 4 |
| PCI devices onboard | |
| Device_1 | Gigabit LAN |
| Device_2 | S-ATA RAID Controller |
| Connections | |
| PS/2 | 2 |
| USB | 2 |
| USB 3.1 Gen1 | 6 |
| Microphone | 2 |
| Audio input | 1 |
| Audio output | 2 |
| NetworkNetwork (RJ-45) | 1 |
| Expansion slots | |
| M.2 | 2 |
| PCIe x16 | 2 |
| PCIe x4 | 1 |
| PCIe x8 | 1 |
| Operating system | |
| Windows 11 Pro | Digital Product Key |
Included in delivery: Item as described incl. CPU cooler incl. HDD mounting frame incl. Power cable incl. Windows 11 Pro license
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
