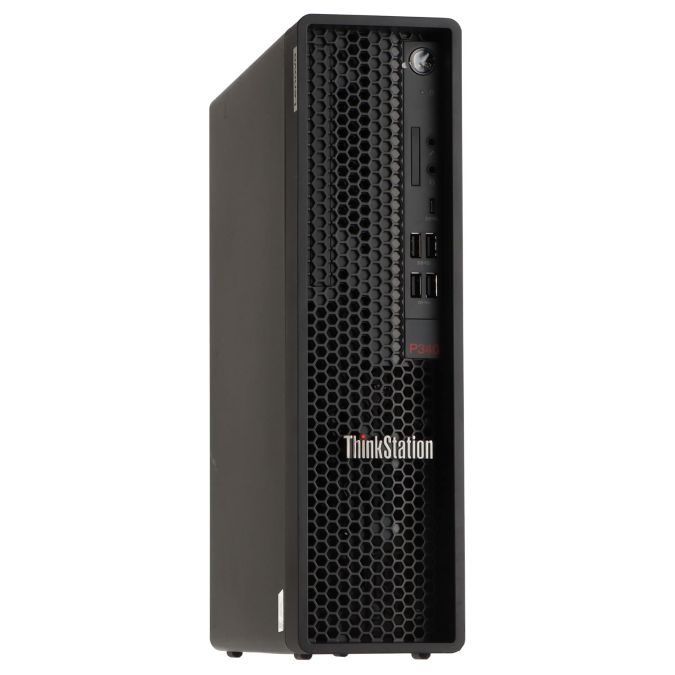

Lenovo ThinkStation P340 SFF Workstation Xeon W-1250 6-Core 3.3GHz 32GB DDR4 RAM 512GB NVME Windows 11
| Applicability | Workstation |
|---|---|
| Manufacturer | Lenovo |
| SKU | 10010248 |
| Product Type | Workstation |
Lenovo ThinkStation P340 SFF Workstation Xeon W-1250 6-Core 3.3GHz 32GB DDR4 RAM 512GB NVME Windows 11 is an enterprise hardware item from Lenovo, suitable for professional workstation and CAD/compute environments. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Lenovo
- SKU: 10010248
- Category: Workstations / Lenovo Workstations / ThinkStation P340
- Stock status: InStock
- Corresponding P/Ns: Lenovo Thinkstation P340 SFF
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Number of CPUs | 1 |
| Number of cores per CPU | 6 |
| CPU Socket | FCLGA1200 |
| Number of CPU sockets | 1 |
| Processor | Intel Xeon |
| Processor type | Xeon W-1250 |
| Processor clock (MHz) | 3300 |
| Working memory (GB) | 32 |
| Number of DIMM slots | 4 |
| Memory type | DDR4 RAM |
| Graphics card | onBoard |
| Sound | Yes |
| Intel Smart Cache (MB) | 12 |
| Number of power supply units | 1 |
| Power per power supply unit (watts) | 380 |
| TPM (Trusted Platform Module) | Yes |
| Data carrier | |
| Hard disc type | 1x SATA 3,5' + 1x SATA 2,5' + 2x M.2 2280 NVME |
| 512 GB M.2 NVMe SSD | 1 |
| max. hard discs | 4 |
| PCI devices onboard | |
| Device_1 | Gigabit LAN |
| Device_2 | S-ATA RAID Controller |
| Connections | |
| USB | 2 |
| USB 3.2 Gen1 | 4 |
| USB 3.2 Gen1 Type C | 1 |
| USB 3.2 Gen2 | 2 (PoE input) |
| Serial port (DB9) | 1 |
| Microphone | 1 |
| Audio output | 1 |
| Combined audio connection (headphones + microphone) | 1 |
| Network (RJ-45) | 1 |
| DisplayPort | 2 |
| Expansion slots | |
| M.2 WLAN | 1 |
| M.2 NVMe | 2 |
| PCIe 3.0 x16 @ x4 Low Profile | 1 |
| PCIe 3.0 x16 Low Profile | 1 |
| PCIe 3.0 x1 Low Profile | 1 |
| Operating system | |
| Windows 11 Pro | Digital Product Key |
| Note | |
| Optical defect | Paintwork partially damaged, may show scratches and signs of use. |
Included in delivery: Item as described incl. Hard disk frame incl. Power cable incl. Windows 11 Pro license w/o manual
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
