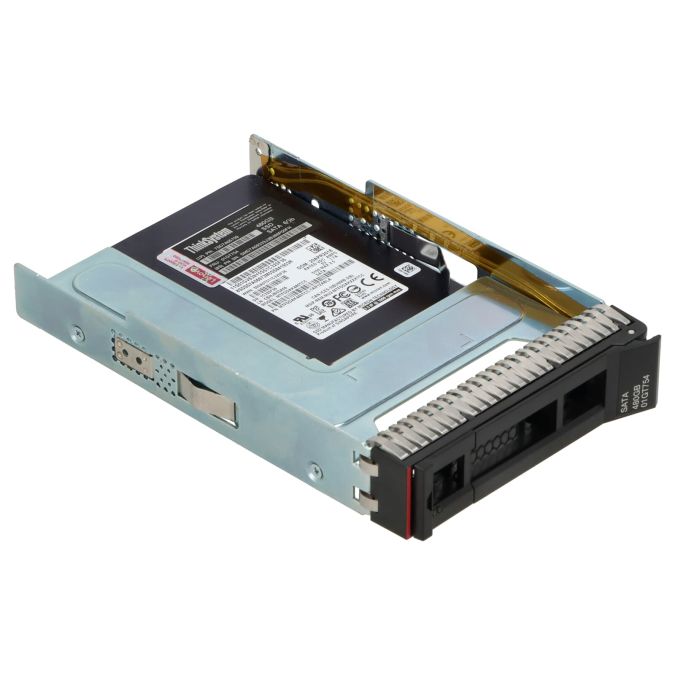

Lenovo SATA SSD 5100 MAX 480GB SATA 6G LFF - 01GT754 7SD7A05759
| MPN | 01GT754 |
|---|---|
| Applicability | Workstation |
| Manufacturer | Lenovo |
| SKU | 50023261 |
| Product Type | Workstation |
Lenovo SATA SSD 5100 MAX 480GB SATA 6G LFF - 01GT754 7SD7A05759 is an enterprise hardware item from Lenovo, suitable for repair, upgrade and spare-part replacement projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Lenovo
- SKU: 50023261
- Category: Parts / Hard Drives / SSDs / SATA
- Stock status: InStock
- Product family: ThinkAgile HX2320 Appliance Type 7X83| ThinkAgile HX3520-G Appliance Type 7X84| ThinkAgile VX 1U Certified Node Type 7Y93| ThinkAgile VX 2U Certified NodeType 7Y94| ThinkStation P920 Rack Workstation Type 7X06| ThinkSystem SR530 Type 7X07| ThinkSystem SR530 Type 7X08| ThinkSystem SR550 Type 7X03| ThinkSystem SR550 Type 7X04| ThinkSystem SR570 Type 7Y02| ThinkSystem SR570 Type 7Y03| ThinkSystem SR590 Type 7X98| ThinkSystem SR590 Type 7X99| ThinkSystem SR630 Type 7X01| ThinkSystem SR630 Type 7X02| ThinkSystem SR650 Type 7X05| ThinkSystem ST550 Type 7X09| ThinkSystem ST550 Type 7X10
- Corresponding P/Ns: 01GT754 5100 MAX 7SD7A05759 MTFDDAK480TCC
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Capacity in GB | 480 |
| Interface | SATA 6G |
| Connection | SATA (7-pin) |
| Data transfer rate | 600 MBps |
| Reading speed | 540 MBps |
| Writing speed | 520 MBps |
| Random read accesses in IOPS | 93000 |
| Random write accesses in IOPS | 74000 |
| Hot-plug frame | Yes |
| Design | 2,5' |
| Frame type | Lenovo SAS 3.5' LFF - SR550 SR650 SR590 SR570 |
| Sector Format | 512e |
| Sector size (physical) | 4096 |
| Sector size (logical) | 512 |
Included in delivery: Item as described incl. Drive Tray
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
