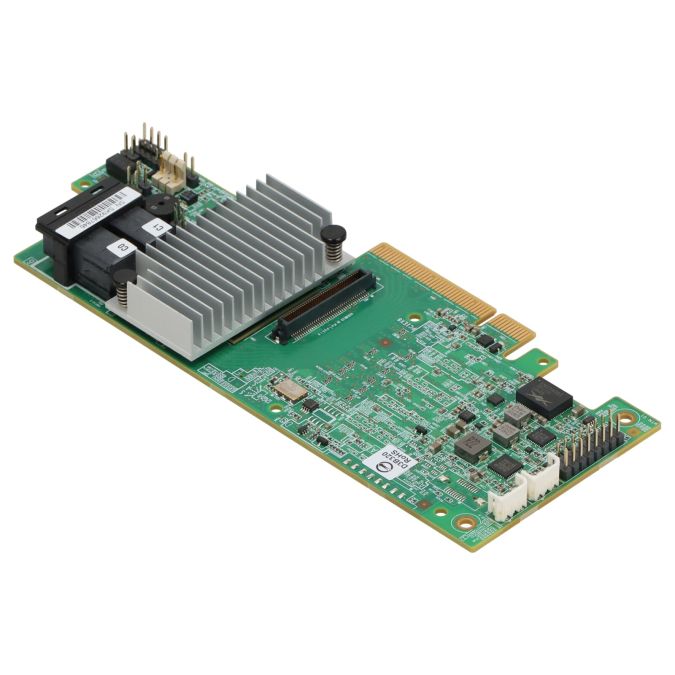

Lenovo 730-8i 8-CH RAID Controller SAS 12G SATA 6G PCIe - 01KN506
| MPN | 01KN506 |
|---|---|
| Applicability | Workstation |
| Manufacturer | Lenovo |
| SKU | 50023882 |
| Product Type | Workstation |
Lenovo 730-8i 8-CH RAID Controller SAS 12G SATA 6G PCIe - 01KN506 is an enterprise hardware item from Lenovo, suitable for repair, upgrade and spare-part replacement projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Lenovo
- SKU: 50023882
- Category: Parts / Controller / Raid Controller
- Stock status: InStock
- Product family: Lenovo ThinkStation P920 Rack Workstation Type 7X06| Lenovo ThinkSystem SR250 Type 7Y51| Lenovo ThinkSystem SR250 Type 7Y52| Lenovo ThinkSystem SR530 Type 7X07| Lenovo ThinkSystem SR530 Type 7X08| Lenovo ThinkSystem SR550 Type 7X03| Lenovo ThinkSystem SR550 Type 7X04| Lenovo ThinkSystem SR570 Type 7Y02| Lenovo ThinkSystem SR570 Type 7Y03| Lenovo ThinkSystem SR590 Type 7X98| Lenovo ThinkSystem SR590 Type 7X99| Lenovo ThinkSystem SR630 Type 7X01| Lenovo ThinkSystem SR630 Type 7X02| Lenovo ThinkSystem SR635 Type 7Y98| Lenovo ThinkSystem SR635 Type 7Y99| Lenovo ThinkSystem SR650 Type 7X05| Lenovo ThinkSystem SR655 Type 7Y00| Lenovo ThinkSystem SR655 Type 7Z01| Lenovo ThinkSystem SR670 Type 7Y36| Lenovo ThinkSystem SR670 Type 7Y38| Lenovo ThinkSystem SR850 Type 7X18| Lenovo ThinkSystem SR850 Type 7X19| Lenovo ThinkSystem SR850P Type 7D2F| Lenovo ThinkSystem SR850P Type 7D2G| Lenovo ThinkSystem SR850P Type 7D2H| Lenovo ThinkSystem SR860 Type 7X69| Lenovo ThinkSystem SR860 Type 7X70| Lenovo ThinkSystem SR950 Type 7X11| Lenovo ThinkSystem SR950 Type 7X12| Lenovo ThinkSystem SR950 Type 7X13| Lenovo ThinkSystem ST250 Type 7Y45| Lenovo ThinkSystem ST250 Type 7Y46| Lenovo ThinkSystem ST50 Type 7Y48| Lenovo ThinkSystem ST50 Type 7Y49| Lenovo ThinkSystem ST550 Type 7X09| Lenovo ThinkSystem ST550 Type 7X10| STA 430-8i SAS/SATA HBA Type 7Y37
- Corresponding P/Ns: 01KN506 MR SAS 9361-8i RAID 730-8i 1G
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | RAID controller |
| Controller interface type | SAS 12G/SATA 6G |
| Number of channels | 8 |
| Capacitor Pack | no |
| Data transfer rate (SAS) | 12 Gbps, 6 Gbps, 3 Gbps |
| Data transfer rate (SATA) | 6 Gbps, 3 Gbps, 1.5 Gbps |
| Max. number of peripheral devices | 8 |
| PCI variant | PCI-E 3.0 x8 |
| Buffer size (MB) | 1024 |
| RAID | |
| RAID functionality | Yes |
| RAID level 0 | Yes |
| RAID Level 1 | Yes |
| RAID Level 5 | Yes |
| RAID level 10 | Yes |
| RAID level 50 | Yes |
| Connections | |
| HD Mini-SAS (SFF-8643) 4x int. 36-pin | 2 |
Included in delivery: Item as described w/o Accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
