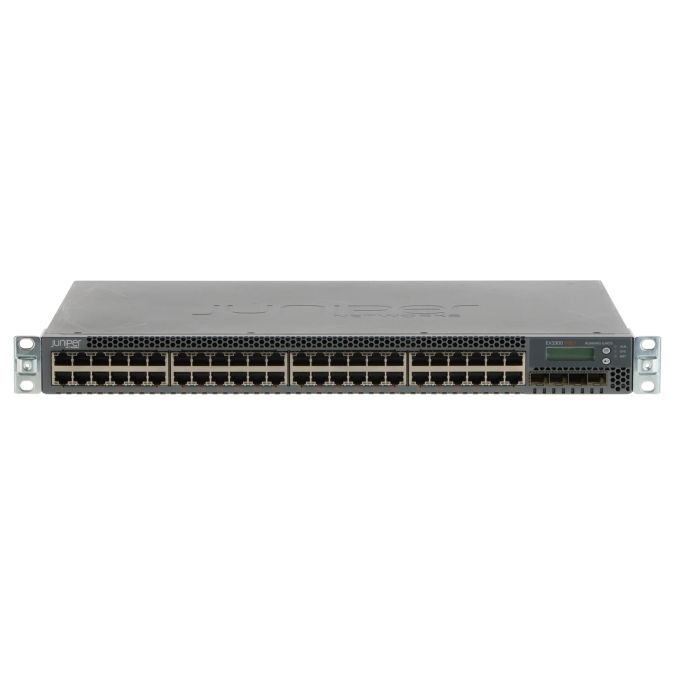

Juniper EX3300 Switch 48x 1Gbit PoE+ 4x SFP+ - EX3300-48P
| MPN | 650-063367 |
|---|---|
| Applicability | Network |
| Manufacturer | Juniper Networks |
| SKU | 10006250 |
| Product Type | Transceiver |
Juniper EX3300 Switch 48x 1Gbit PoE+ 4x SFP+ - EX3300-48P is an enterprise hardware item from Juniper Networks, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Juniper Networks
- SKU: 10006250
- Stock status: InStock
- Corresponding P/Ns: 650-063367 EX3300-48P
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Ethernet switch |
| Type of construction | Rack-mountable, 1U |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data transfer rate (Ethernet) | 1 Gbps |
| Flash memory (MB) | 1024 |
| Power supply units | 1 |
| PoE Power | 740 watts |
| RAM (MB) | 1024 |
| Airflow | Front to Rear |
| Performance features | |
| ACL | Yes |
| ARP | Yes |
| Auto MDI/MDI-X | Yes |
| CLI | Yes |
| DHCP | Yes |
| HTTP | Yes |
| HTTPS | Yes |
| IGMP | Yes |
| IGMPv2 | Yes |
| IGMPv3 | Yes |
| MAC Address Table Size | 16000 |
| MSTP | Yes |
| Managebar | Yes |
| OSPF | Yes |
| OSPFv2 | Yes |
| OSPFv3 | Yes |
| PoE | Yes |
| QoS | Yes |
| RIP v1 | Yes |
| RIP v2 | Yes |
| RIPng | Yes |
| RSTP | Yes |
| SNMPv1 | Yes |
| SNMPv2c | Yes |
| SNMPv3 | Yes |
| SSH | Yes |
| SSH v2 | Yes |
| STP | Yes |
| VLAN | 4096 VLANs |
| VRRP | Yes |
| Product certifications (IEEE) | |
| 802.1w Rapid STP (RSTP) | Yes |
| 802.3 10BASE-T Ethernet | Yes |
| 802.3ab 1000BASE-T copper twisted pair Gigabit Ethernet | Yes |
| 802.3ad Link Aggregation Control Protocol | Yes |
| 802.3af Power over Ethernet (PoE) | Yes |
| 802.3u 100BASE-TX Fast Ethernet | Yes |
| 802.3x full-duplex flow control | Yes |
| 802.3z 1000BASE-LX long range fibre optics Gigabit Ethernet | Yes |
| 802.3z 1000BASE-SX short range fibre optics Gigabit Ethernet | Yes |
| 802.3at Power or Ethernet + (PoE+) | Yes |
| Connections | |
| Network - PoE+ - RJ-45 | 48 |
| Management - Ethernet - RJ-45 | 1 |
| Management - RS-232 - RJ-45 | 1 |
| Management - RS-232 - USB | 1 |
Included in delivery: Item as described incl. Mounting bracket incl. Power cable w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
