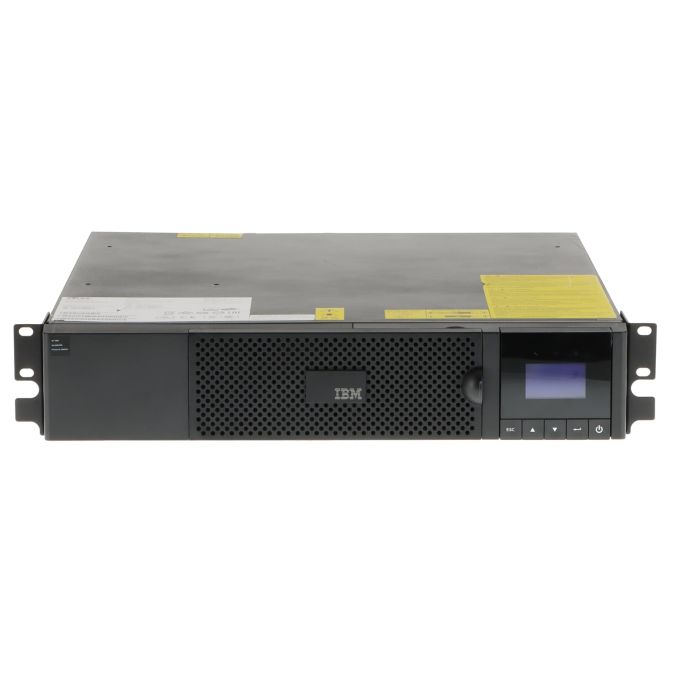

IBM USV RT2.2kVA Rack UPS 2200VA/1980W 200-240VAC 2U - 55942KX Akkus neu
| MPN | 00FP724 |
|---|---|
| Applicability | Power |
| Manufacturer | IBM |
| SKU | 30007890 |
| Product Type | UPS |
IBM USV RT2.2kVA Rack UPS 2200VA/1980W 200-240VAC 2U - 55942KX Akkus neu is an enterprise hardware item from IBM, suitable for repair, upgrade and spare-part replacement projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: IBM
- SKU: 30007890
- Category: Parts / Power Supply / UPS / Rack UPS
- Stock status: InStock
- Product family: Lenovo 1.5kVA/2.2kVA 2U Rack or Tower Extended Battery Module 55942BX A53Y| Lenovo 3kVA 2U Rack or Tower Extended Battery Module 55943BX A53Z| Lenovo Environmental Monitoring Probe 46M4113 6146| Lenovo UPS Network Management Card 46M4110 6145
- Corresponding P/Ns: 00FP724 44T1014 55942KX 5594RU2
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Category | UPS |
| Input voltage | 200V-240V AC |
| Output voltage | 200V-240V AC |
| Frequency limit (mains operation) | 50-60 Hz |
| Battery type | Maintenance-free, sealed lead-acid battery with suspended electrolyte, leak-proof |
| Battery status | The device is supplied with new batteries. |
| Max. Amperage | 16 A |
| Max. Current per output | 10A C13, 16A C19 |
| Max. output power | 1980 Watt / 2200 VA |
| Normal battery life at full load (manufacturer's specification) | 2 minutes (1980Watt) |
| Operating time at half load (manufacturer's specification) | 7 minutes (990 watts) |
| Input connections | |
| ERM connection | 1 |
| IEC 60320 C20 | 1 |
| Output connections | |
| IEC 60320 C19 | 1 |
| IEC 60320 C13 | 8 |
| Number of load segments | 2 |
| Interfaces | |
| USB | 1 |
| Management - RS-232 - RJ-45 | 1 |
| LED status display | |
| Operation | Yes |
| Battery operation | Yes |
| Battery change | Yes |
| Overload | Yes |
| Features | |
| Access via browser | no |
| Note | |
| Optical defect | May show scratches and signs of use. |
Included in delivery: Item as described incl. Batteries incl. Front panel incl. Rack mounting bracket w/o Management Card w/o Power cable w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
