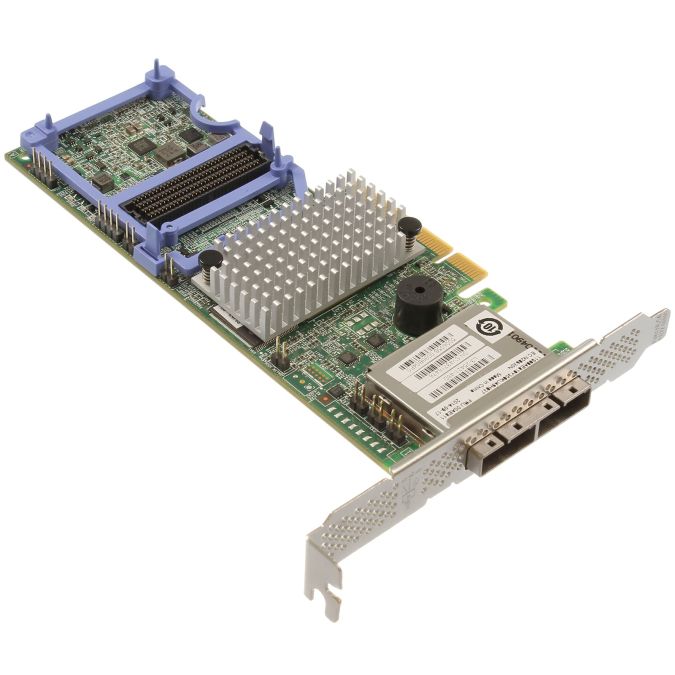

IBM ServeRAID M5120 8-CH 0MB SAS 6G SATA 6G PCI-E - 00AE811
| MPN | 00AE811 |
|---|---|
| Applicability | Server |
| Manufacturer | IBM |
| SKU | 50016914 |
| Product Type | RAID Controller |
IBM ServeRAID M5120 8-CH 0MB SAS 6G SATA 6G PCI-E - 00AE811 is an enterprise hardware item from IBM, suitable for repair, upgrade and spare-part replacement projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: IBM
- SKU: 50016914
- Category: Parts / Controller / Raid Controller
- Stock status: InStock
- Product family: System x3100 M5| System x3250 M5| System x3500 M4| System x3530 M4| System x3550 M4| System x3630 M4| System x3650 M4| System x3750 M4| System x3850 X6| System x3950 X6
- Corresponding P/Ns: 00AE811
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Note | |
| Special feature | RAID 5 50 6 60 only with optional upgrades |
| Device type | RAID controller |
| Controller interface type | SAS 6G/SATA 6G |
| Number of channels | 8 |
| Battery module | no |
| Data transfer rate in MByte/s | 600 |
| Low Profile | no |
| Max. number of peripheral devices | 8 |
| PCI variant | PCI-E x8 |
| RAID | |
| RAID functionality | Yes |
| RAID level 0 | Yes |
| RAID Level 1 | Yes |
| RAID level 10 | Yes |
| Connections | |
| SAS/SATA (SFF-8088) 4x ext. - 26-pin | 2 |
Included in delivery: Item as described w/o Accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
