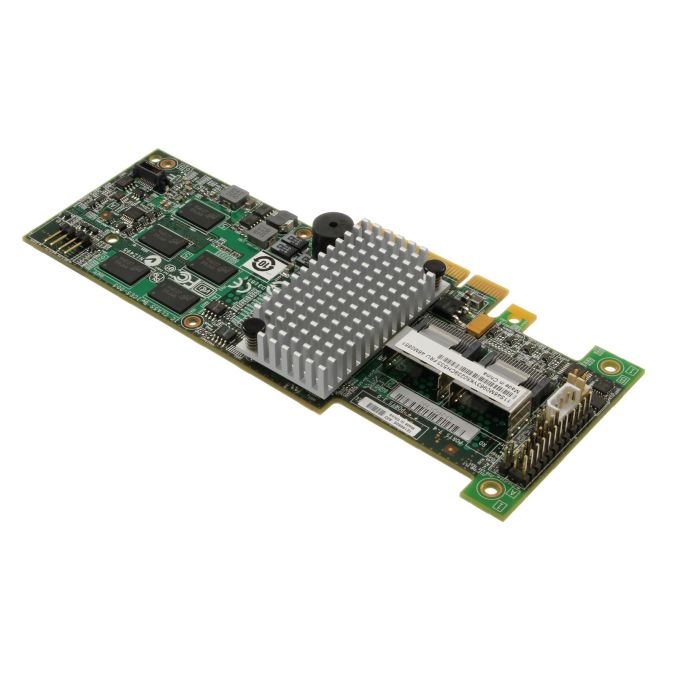

IBM ServeRAID M5015 8 CH 512MB SAS SATA PCI-E without battery - 46M0851
In stock
SKU
50014315
€32.68
| MPN | 46M0851 |
|---|---|
| Applicability | Server |
| Manufacturer | IBM |
| SKU | 50014315 |
| Product Type | RAID Controller |
IBM ServeRAID M5015 8 CH 512MB SAS SATA PCI-E without battery - 46M0851 is an enterprise hardware item from IBM, suitable for repair, upgrade and spare-part replacement projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: IBM
- SKU: 50014315
- Category: Parts / Controller / Raid Controller
- Stock status: InStock
- Product family: System x3100 M4| System x3550 M3| System x3650 M3| System x3750 M4
- Corresponding P/Ns: 46M0851
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Note | |
| Special feature | Raid 6/60 only with ServeRAID M5000 Series Advanced Feature Key |
| Device type | RAID controller |
| Controller interface type | SAS/SATA |
| Number of channels | 8 |
| Battery module | no |
| Data transfer rate in MByte/s | 600 |
| Max. number of peripheral devices | 8 |
| PCI variant | PCI-E x8 |
| Buffer size (MB) | 512 |
| RAID | |
| RAID functionality | Yes |
| RAID level 0 | Yes |
| RAID Level 1 | Yes |
| RAID Level 5 | no |
| RAID level 10 | Yes |
| RAID level 50 | no |
| Connections | |
| SAS/SATA (SFF-8087) 4x int. - 36-pin | 2 |
Included in delivery: Item as described w/o Accessories w/o RAID Battery w/o Slot bracket
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
| MPN | 46M0851 |
|---|---|
| Applicability | Server |
| Manufacturer | IBM |
| SKU | 50014315 |
| Product Type | RAID Controller |
