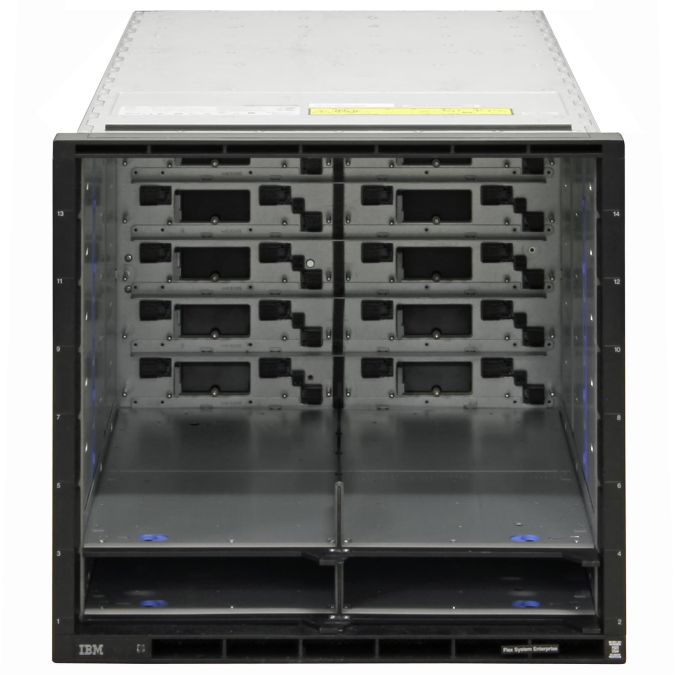

IBM Flex System Enterprise Chassis 8721 Base Config 2x 2500W 4x 80mm
| MPN | 00AN232 |
|---|---|
| Applicability | Server |
| Manufacturer | IBM |
| SKU | 10004304 |
| Product Type | Server |
IBM Flex System Enterprise Chassis 8721 Base Config 2x 2500W 4x 80mm is an enterprise hardware item from IBM, suitable for server and data-center environments. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: IBM
- SKU: 10004304
- Category: Server / IBM/Lenovo / Blade
- Stock status: InStock
- Product family: Fex System x240 (8737)| Fex System x240 M5| Flex System Manager| Flex System p24L| Flex System p260| Flex System p270| Flex System p460| Flex System x220| Flex System x222| Flex System x280 X6| Flex System x440| Flex System x480 X6| Flex System x880 X6
- Corresponding P/Ns: 00AN232 68Y7030 69Y5890 81Y2910 81Y2911 8721 94Y8251
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Enclosure model | Flex System Enterprise |
| Number of slide-in units | 14 |
| Number of power supply units | 2 |
| Power per power supply unit (watts) | 2500 |
| Number of fans | 6 |
| Modules | |
| IBM Chassis Management Module (CMM) | 1 |
| Connections | |
| Management - RJ-45 | 1 |
| Serial port (mini-USB) | 1 |
| USB | 1 |
| Power supply | |
| IEC 60320 C20 | 2 |
| Note | |
| Special feature | In this basic version, a maximum of 4 nodes (Bay 1-4) can be used simultaneously. |
Included in delivery: Item as described w/o Accessories w/o Blades w/o Power cable (C19) w/o Rack mounting rails w/o Software / Drivers
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
