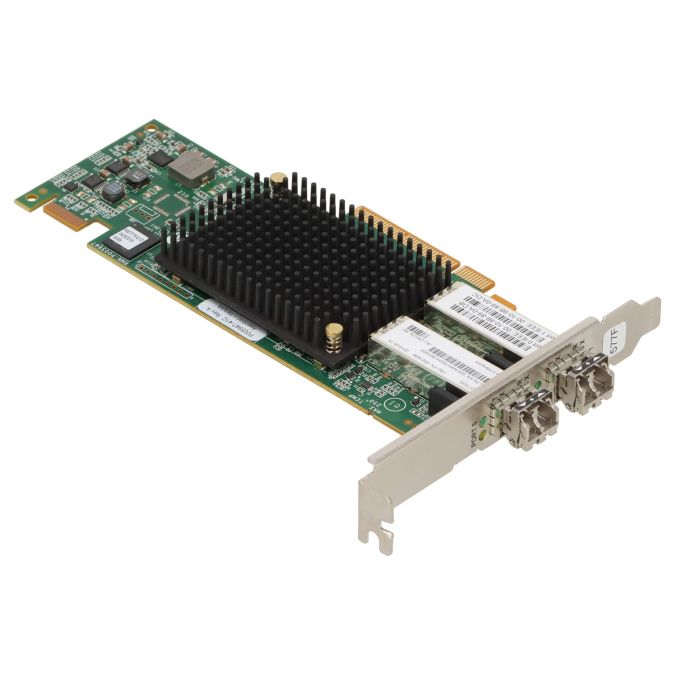

IBM FC Controller 2-Port 16Gbps PCIe3 x8 POWER9 - 00E3496 577F EN0A
In stock
SKU
50023052
€49.45
| MPN | 00E3496 |
|---|---|
| Applicability | Server |
| Manufacturer | IBM |
| SKU | 50023052 |
| Product Type | CPU |
IBM FC Controller 2-Port 16Gbps PCIe3 x8 POWER9 - 00E3496 577F EN0A is an enterprise hardware item from IBM, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: IBM
- SKU: 50023052
- Stock status: InStock
- Product family: IBM EMX0 PCIe Gen3 I/O Expansion Drawer (FC EL5B)| IBM Power System E950 (9040-MR9)| IBM Power System H924 (9223-42H)| IBM Power System H924S (9223-42S)| IBM Power System S914 (9009-41A)| IBM Power System S914 (9009-41G)| IBM Power System S924 (9009-42A)| IBM Power System S924 (9009-42G)| IBM POWER9 Systems
- Corresponding P/Ns: 00E3496 CCIN 577F FC EN0A LPE16002
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | FC controller |
| Controller interface type | Fibre Channel |
| Form factor | Plug-in card |
| Number of channels | 2 |
| Data transfer rate (FC) | 16 Gbps, 8 Gbps, 4 Gbps |
| PCI variant | PCI-E 3.0 x8 |
| Slot compatibility | at least PCI-E x8 |
| Connections | |
| Network - FC - SFP+ | 2 |
| Status indicator | |
| Link Activity | Yes |
| Link OK | Yes |
Included in delivery: Item as described incl. 2x 16Gbps GBICs w/o Accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
| MPN | 00E3496 |
|---|---|
| Applicability | Server |
| Manufacturer | IBM |
| SKU | 50023052 |
| Product Type | CPU |
