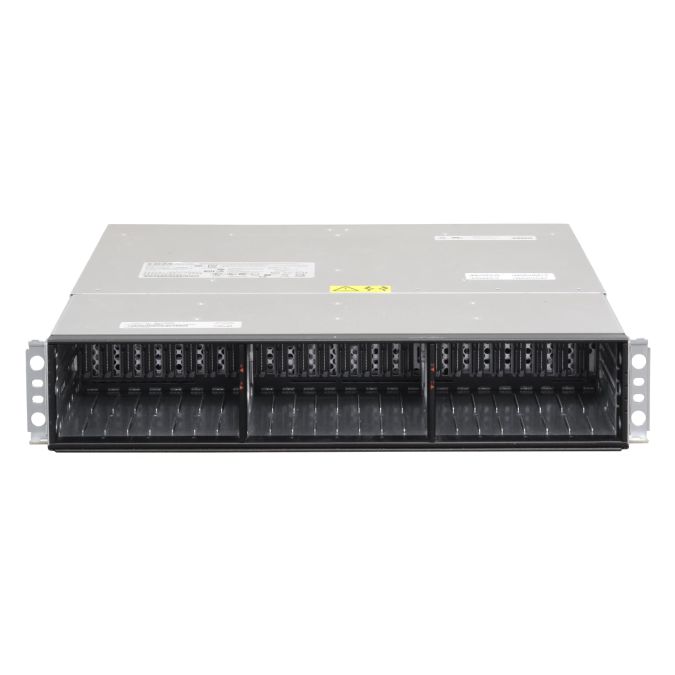

IBM Disk Enclosure System Storage EXP3524 2x ESM SAS 6G - 1746-E4A
| MPN | 1746-E4A |
|---|---|
| Applicability | Storage |
| Manufacturer | IBM |
| SKU | 10004399 |
| Product Type | SAN |
IBM Disk Enclosure System Storage EXP3524 2x ESM SAS 6G - 1746-E4A is an enterprise hardware item from IBM, suitable for storage, backup and data-center expansion projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: IBM
- SKU: 10004399
- Category: Storage / Storage SAN
- Stock status: InStock
- Product family: System Storage DS3512| System Storage DS3524| System Storage EXP3512| System Storage EXP3524
- Corresponding P/Ns: 1746-E4A 69Y0189 69Y0201 69Y0259
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | SAN Disk Enclosure |
| Hard disc type | SATA, 6G SAS |
| Number of power supply units | 2 |
| Number of installed hard drives | 0 |
| max. hard discs | 24 |
| Data transfer rate (Ethernet) | 100 Mbps |
| Data transfer rate (SAS) | 6 Gbps |
| Controller | |
| IBM ESM modules | 2 |
| Connections | |
| Extension - SAS - SFF-8088 | 6 |
| Management - Ethernet - RJ-45 | 2 |
| Management - RS-232 - PS/2 | 2 |
Included in delivery: Item as described incl. Power cable w/o Accessories w/o Hard disks w/o Rack mounting rails w/o Side panels / Ears
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
