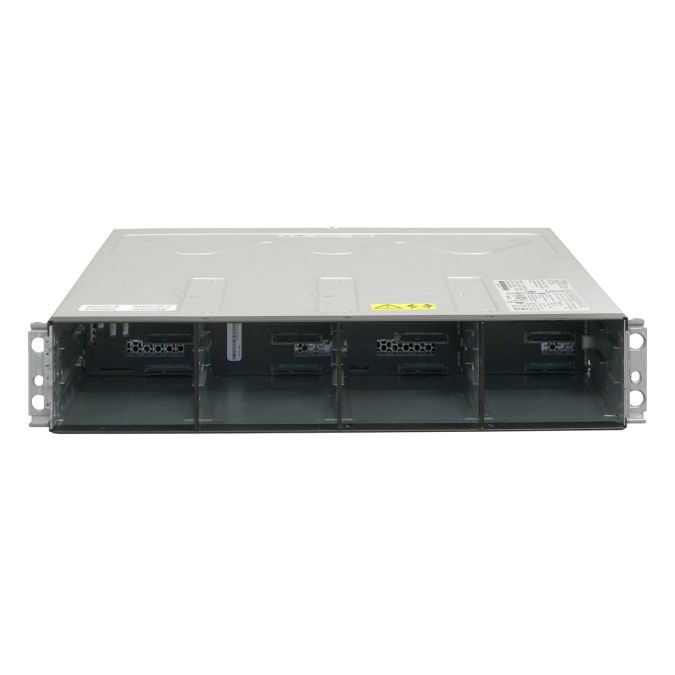

IBM Disk Enclosure System Storage EXP3512 2x ESM SAS 6G - 1746
| MPN | 1746-E2A |
|---|---|
| Applicability | Storage |
| Manufacturer | IBM |
| SKU | 10004003 |
| Product Type | SAN |
IBM Disk Enclosure System Storage EXP3512 2x ESM SAS 6G - 1746 is an enterprise hardware item from IBM, suitable for storage, backup and data-center expansion projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: IBM
- SKU: 10004003
- Category: Storage / Storage SAN
- Stock status: InStock
- Corresponding P/Ns: 1746-E2A 68Y8467 68Y8487 69Y0189 69Y0201 69Y0249
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Disc Enclosure |
| Hard disc type | SATA, 6G SAS |
| Number of power supply units | 2 |
| Number of installed hard drives | 0 |
| max. hard discs | 12 |
| Data transfer rate | 6 Gbps |
| Controller | |
| IBM ESM modules | 2 |
| Connections | |
| Ethernet 100Base-TX (management) - RJ-45 | 2 |
| Serial Attached SCSI - (SFF-8088 - Out) | 4 |
| Serial Attached SCSI - (SFF-8088 - in) | 2 |
| Management - RS-232 - PS/2 | 2 |
| Note | |
| Special feature | The side cover is missing. This does NOT impair the function! |
Included in delivery: Item as described incl. Power cable w/o Accessories w/o Hard disks w/o Rack mounting rails w/o Side panels / Ears
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
