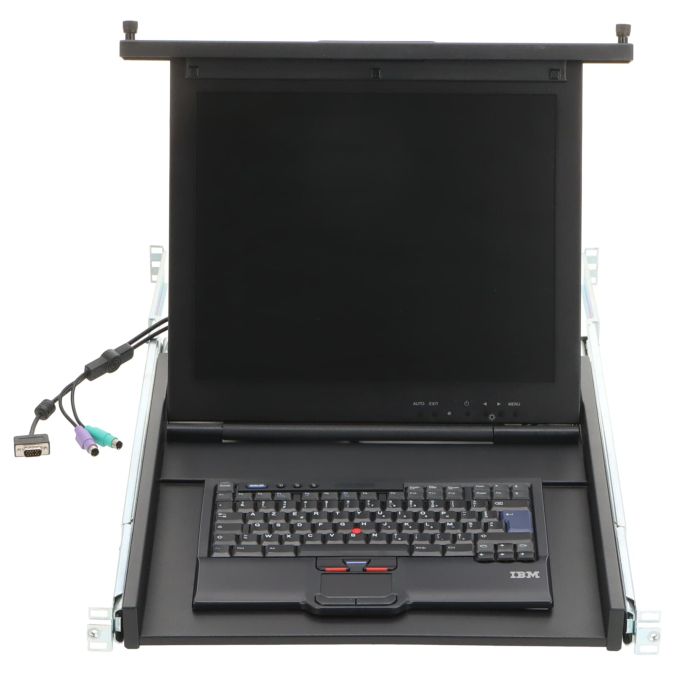

IBM 19 Console 7316-TF3 17 TFT 1U FR - 80P3750
| MPN | 7316-TF3 |
|---|---|
| Applicability | Server |
| Manufacturer | IBM |
| SKU | 10010368 |
| Product Type | Server |
IBM 19 Console 7316-TF3 17 TFT 1U FR - 80P3750 is an enterprise hardware item from IBM, suitable for server and data-center environments. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: IBM
- SKU: 10010368
- Category: Parts / Server Cabinets & Accessories / Console / 17 TFT
- Stock status: InStock
- Product family: pSeries 610 Model 6C1| pSeries 615 Model 6C3| pSeries 630 Model 6C4| pSeries 640 Model B80| pSeries 650 Model 6M2| pSeries 655 Model 651| pSeries 660 Models 6M1/6H1/6H0| pSeries 670 Model 671| pSeries 680 Model S85| pSeries 690 Model 681| RS/6000 7017-S80| RS/6000 7025-H70| RS/6000 7026-H70| RS/6000 7026-H80| RS/6000 7026-M80| RS/6000 7040-61D| RS/6000 7046-B50| RS/6000 7311-D10/D20| RS/6000 7315-CR2
- Corresponding P/Ns: 7316-TF3 80P3750 89P8507 Power System Flat Panel Console (7316-TF3)
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Rack console |
| Device width in inches | 19 |
| Device height in HE | 1 |
| Display | |
| Type | SXGA TN/TFT |
| Screen diagonal | 17 inch / 43.2 cm |
| Resolution (max) | 1280 x 1024 @ 75Hz |
| Signal input | Video Input Analogue RGB |
| Power consumption | 32 Watt max. |
| OSD menu | Yes |
| Keyboard | |
| Layout | AZERTY (France) |
| Trackpad | Yes |
| Connections | |
| Output - VGA | 1 |
| PS/2 (mouse/keyboard) | 2 |
| Power supply - IEC 60320 C14 | 1 |
| Note | |
| Rack mounting rails included | Yes |
Included in delivery: Item as described incl. Cable management arm incl. KVM cable incl. Power cable incl. Power supply unit incl. Rack mounting rails w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
