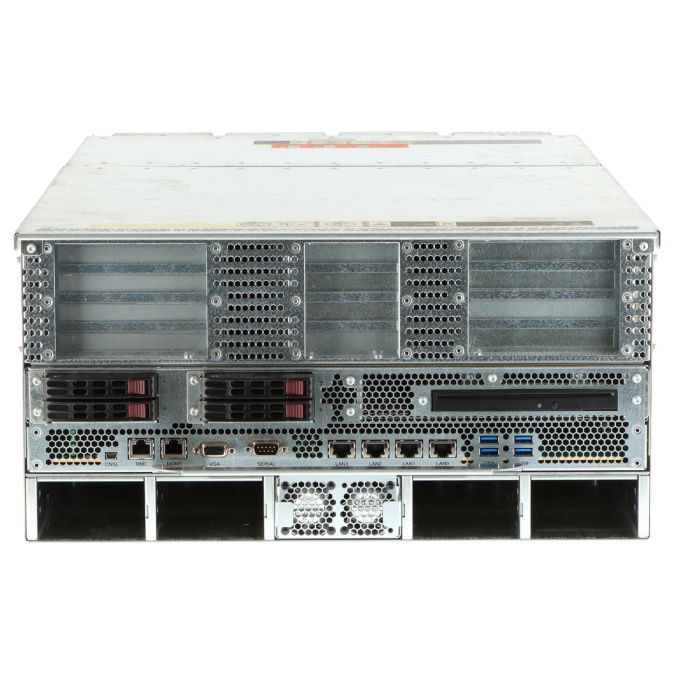

HPE Superdome Flex for SAP HANA 4-Socket 12-Slot PCIe Base CTO Server - Q7G51A
| MPN | P02896-001 |
|---|---|
| Applicability | Server |
| Manufacturer | HPE |
| SKU | 10009967 |
| Product Type | Server |
HPE Superdome Flex for SAP HANA 4-Socket 12-Slot PCIe Base CTO Server - Q7G51A is an enterprise hardware item from HPE, suitable for server and data-center environments. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: HPE
- SKU: 10009967
- Category: Server / HP / HPE / other
- Stock status: InStock
- Product family: HPE 1U External Rack Management Controller (RMC)| HPE Superdome Flex Expansion Chassis| SAP HANA (High-Performance Analytic Appliance)| SAP HANA TDI (Tailored Data Center Integration)
- Corresponding P/Ns: P02896-001 P02897-001 P02898-001 P02899-001 P02900-001 P02901-001 P02909-001 P02932-001 Q7G51A
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Processor | Intel Xeon |
| Processor type | 1st/2nd Generation Scalable Processor |
| Number of CPUs | 0 |
| Base type | FCLGA3647 |
| Number of CPU sockets | 4 |
| Max. Number of cores per CPU | 28 |
| Max TDP (Thermal Design Power) | 205 watts |
| Working memory (GB) | 0 |
| Memory type | DDR4 RAM |
| Number of DIMM slots | 48 |
| Max. Storage capacity | 1.5TB RDIMM, 6TB LRDIMM |
| Max. Memory data rate | 2933 MT/s |
| Hard disc type | SAS/SATA SFF |
| Hot plug | Yes |
| Graphics card onboard | Yes |
| Number of power supply units | 0 |
| Max. number of power supply units | 4 |
| Number of fans | 8 |
| Type of construction | Rack |
| Hard drives - further HDDs or frames on request | |
| Total capacity (GB) | 0 |
| max. hard discs | 4 |
| Other drives | |
| DVD-RW | Yes |
| PCI devices onboard | |
| Device_1 | Gigabit Ethernet Controller |
| Expansion slots | |
| PCIe 3.0 x8 | 4 |
| PCIe 3.0 x8 Low Profile | 2 |
| PCIe 3.0 x16 | 4 |
| PCIe 3.0 x16 Low Profile | 2 |
| Connections | |
| VGA | 1 |
| Network - Ethernet - RJ-45 | 4 |
| Network - Interconnect - QSFP+ | 30 |
| USB 3.0 | 4 |
| Management - Ethernet - RJ-45 | 2 |
| Management - RS-232 - DB9 | 1 |
| Management - USB - Mini-USB | 1 |
| Note | |
| CPU support | 1st/2nd Generation Gold/Platinum Scalable ProcessorsProcessors |
Included in delivery: Item as described incl. CPU cooler incl. Hard disk frame (with screws) incl. PCIe Expansion Assembly incl. SAS cable w/o Rack mounting rails w/o RAID controller w/o Software/driver w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
