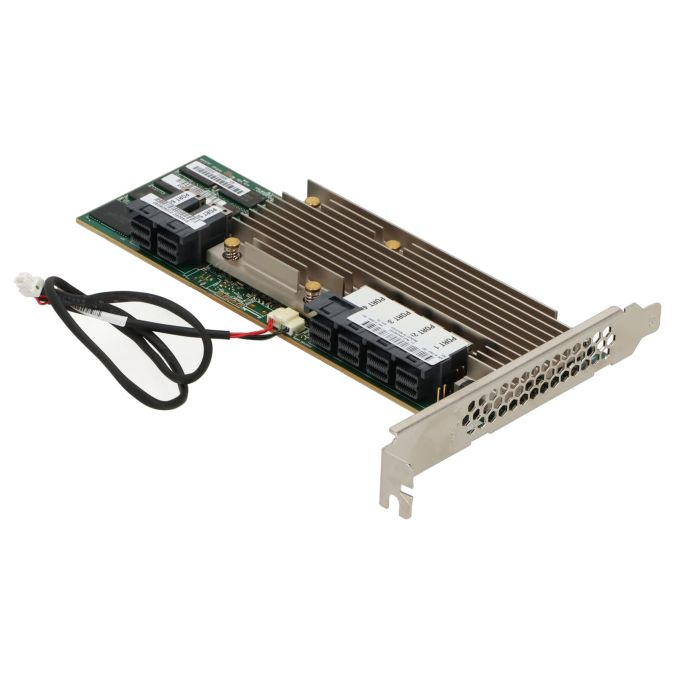

HPE Smart Array P824i-p MR Gen10 24-CH SAS 12G PCI-e without battery - 871043-001 870658-B21
| MPN | 870658-B21 |
|---|---|
| Applicability | Server |
| Manufacturer | HPE |
| SKU | 50024299 |
| Product Type | RAID Controller |
HPE Smart Array P824i-p MR Gen10 24-CH SAS 12G PCI-e without battery - 871043-001 870658-B21 is an enterprise hardware item from HPE, suitable for repair, upgrade and spare-part replacement projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: HPE
- SKU: 50024299
- Category: Parts / Controller / Raid Controller
- Stock status: InStock
- Product family: HPE ProLiant DL360 Gen10| HPE ProLiant DL380 Gen10| HPE ProLiant DL385 Gen10| HPE ProLiant DL560 Gen10| HPE ProLiant DL580 Gen10| HPE ProLiant ML350 Gen10
- Corresponding P/Ns: 870658-B21 870660-001 871043-001
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Note | |
| Special feature | The HPE Smart Storage Energy Pack is required for the P824i-p MR Performance RAID controller |
| Device type | RAID controller |
| Controller interface type | SAS/SATA |
| Number of channels | 24 |
| Capacitor Pack | no |
| Controller cache memory (GB) | 4 |
| Data transfer rate (SAS) | 12 Gbps |
| Data transfer rate (SATA) | 6 Gbps |
| Max Drives Supported | 240 |
| PCI variant | PCI-E 3.0 x8 |
| RAID | |
| RAID functionality | Yes |
| RAID level 0 | Yes |
| RAID Level 1 | Yes |
| RAID Level 5 | Yes |
| RAID level 6 | Yes |
| RAID level 10 | Yes |
| RAID level 50 | Yes |
| RAID level 60 | Yes |
| Connections | |
| HD Mini-SAS (SFF-8643) 4x int. 36-pin | 6 |
Included in delivery: Item as described incl. Battery cable w/o Battery
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
